Climate Control Seat System
›
Climate Control Seat System does not Operate
›
Wiring Diagram
Climate Control Seat System does not Operate: Wiring Diagram

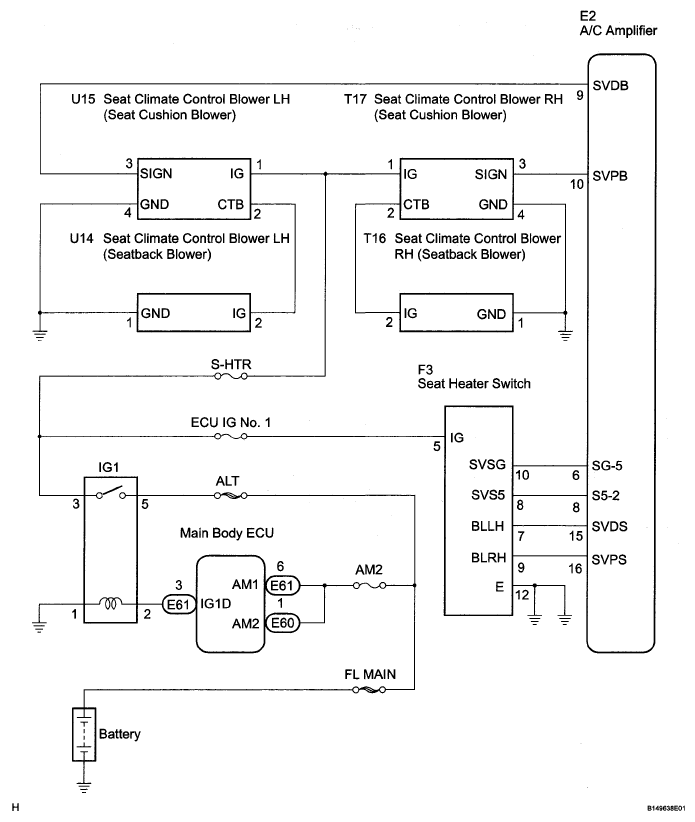

Fig 1: Climate Control Seat System Does Not Operate - Wiring Diagram
