Rear Seat Assembly: Disassembly

REMOVE REAR BENCH TYPE SEAT CUSHION COVER
1. Remove the 33 hog rings.

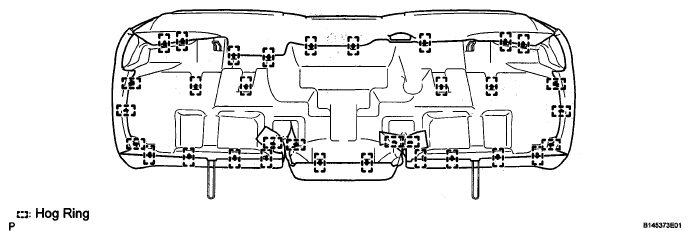

  Fig 1: Identifying Hog Rings
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Remove the 20 hog rings and seat cushion cover from the seat cushion frame (with pad).

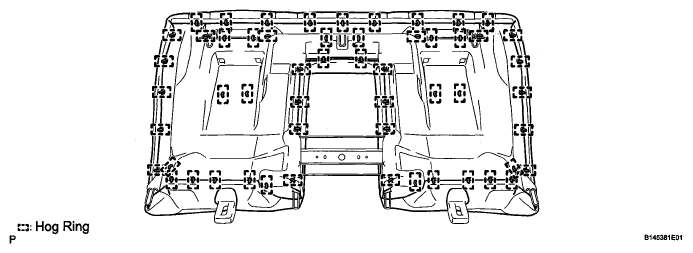

  Fig 2: Identifying Hog Rings
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE INNER CENTER SEAT ARMREST PLATE
1. Disengage the 11 claws and remove the inner center seat armrest plate.

  Fig 3: Identifying Claws And Inner Center Seat Armrest Plate
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE REAR CENTER SEAT ARMREST ASSEMBLY
1. Remove the 2 nuts.
2. Disengage the 2 claws and remove the rear center seat armrest assembly.
Fig 4: Identifying Claws And Rear Center Seat Armrest Assembly
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE REAR SEAT HEADREST SUPPORT
1. Disengage the 6 claws and remove the 3 rear seat headrest supports.

  Fig 5: Identifying Claws And Rear Seat Headrest Supports
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE REAR SEAT HEADREST SUPPORT
REMOVE REAR SEAT SHOULDER BELT GUIDE RH
1. Remove the 3 screws and rear seat shoulder belt guide RH.
Fig 6: Identifying Screws And Rear Seat Shoulder Belt Guide RH
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE REAR SEAT SHOULDER BELT GUIDE LH
HINT:

Use the same procedure for the RH side and LH side.
REMOVE REAR SEAT CENTER SHOULDER BELT GUIDE
1. Remove the 2 screws and rear seat center shoulder belt guide.
Fig 7: Identifying Screws And Rear Seat Center Shoulder Belt Guide
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE REAR BENCH TYPE SEATBACK COVER
1. Remove the 55 hog rings.

  Fig 8: Identifying Hog Rings
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Remove the 20 hog rings and rear bench type seatback cover from the seatback frame (with pad).

  Fig 9: Identifying Hog Rings
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
