Rear Seat Assembly: Reassembly

INSTALL REAR BENCH TYPE SEATBACK COVER

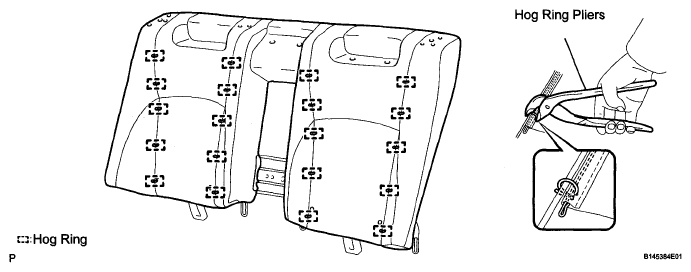

1. Using hog ring pliers, install 20 new hog rings.

  Fig 1: Installing Hog Rings
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  NOTE:
  - Be careful not to damage the cover.
  - When installing the hog rings, take care to minimize wrinkles as much as possible.

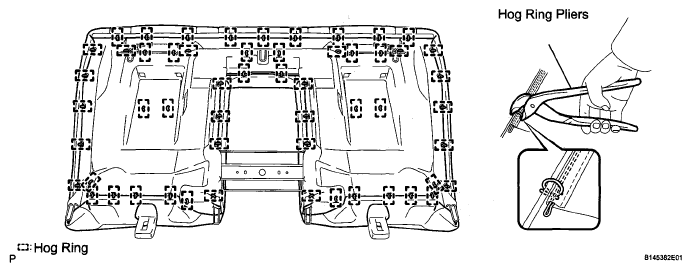

2. Using hog ring pliers, install the rear bench type seatback cover to the seatback frame (with pad) with 55 new hog rings.

  Fig 2: Installing Hog Rings
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  NOTE:
  - Be careful not to damage the cover.
  - When installing the hog rings, take care to minimize wrinkles as much as possible.
INSTALL REAR SEAT CENTER SHOULDER BELT GUIDE
1. Install the rear seat center shoulder belt guide with the 2 screws.

  Fig 3: Identifying Screws And Rear Seat Center Shoulder Belt Guide
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL REAR SEAT SHOULDER BELT GUIDE RH
1. Install the rear seat shoulder belt guide RH with the 3 screws.
Fig 4: Identifying Screws And Rear Seat Shoulder Belt Guide RH
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL REAR SEAT SHOULDER BELT GUIDE LH
HINT:

Use the same procedure for the RH and LH side.

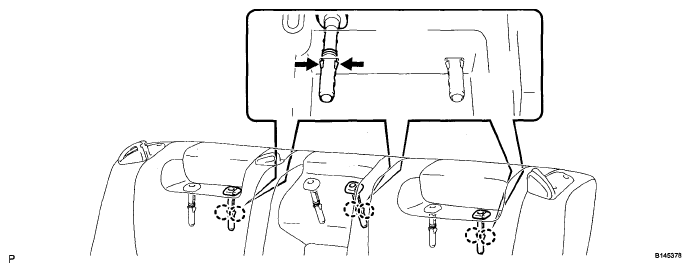

INSTALL REAR SEAT HEADREST SUPPORT
1. Engage the 6 claws and install the 3 rear seat headrest supports.

  Fig 5: Identifying Claws And Rear Seat Headrest Supports
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL REAR SEAT HEADREST SUPPORT
INSTALL REAR CENTER SEAT ARMREST ASSEMBLY
1. Engage the 2 claws and install the rear center seat armrest assembly with the 2 nuts.
  Torque: 8.0 N*m (82 kgf*cm, 71 in.*lbf)

  Fig 6: Identifying Claws And Rear Center Seat Armrest Assembly
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL INNER CENTER SEAT ARMREST PLATE
1. Engage the 11 claws and install the inner center seat armrest plate.

  Fig 7: Identifying Claws And Inner Center Seat Armrest Plate
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL REAR BENCH TYPE SEAT CUSHION COVER

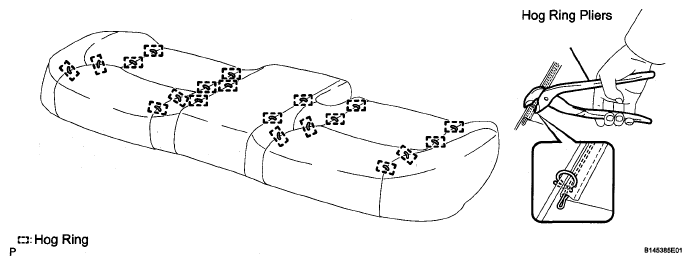

1. Using hog ring pliers, install the rear bench type seat cushion cover to the seat cushion frame (with pad) with 20 new hog rings.

  Fig 8: Installing Hog Rings
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  NOTE:
  - Be careful not to damage the cover.
  - When installing the hog rings, avoid wrinkling the cover.

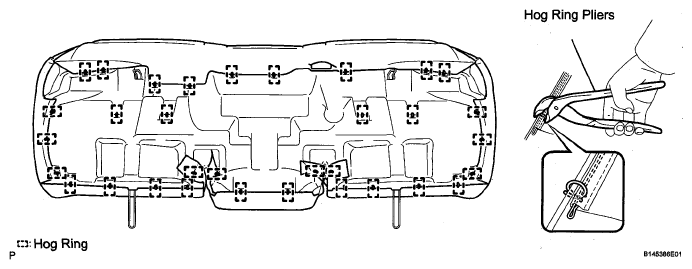

2. Using hog ring pliers, install the rear bench type seat cushion cover to the seat cushion frame (with pad) with 33 new hog rings.

  Fig 9: Installing Hog Rings
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  NOTE:
  - Be careful not to damage the cover.
  - When installing the hog rings, avoid wrinkling the cover.
