ECU Power Source Circuit: Wiring Diagram

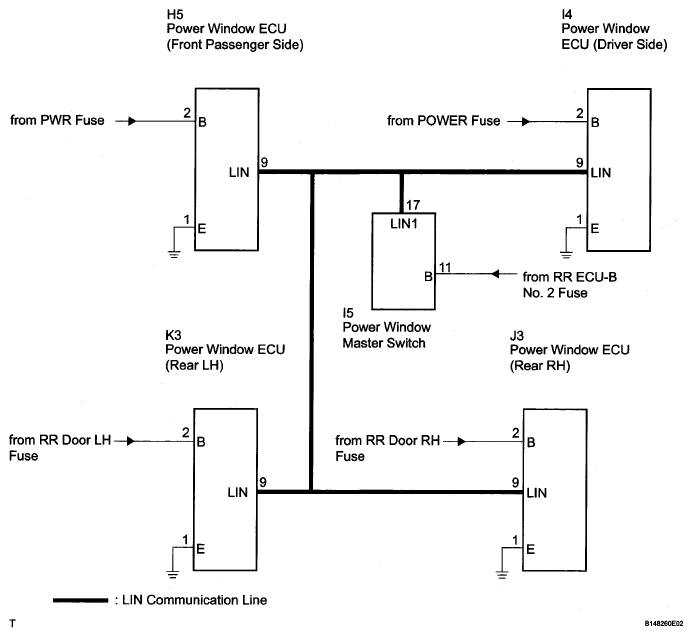

Fig 1: ECU Power Source Circuit - Wiring Diagram
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
