Rear Axle Hub And Bearing: Components

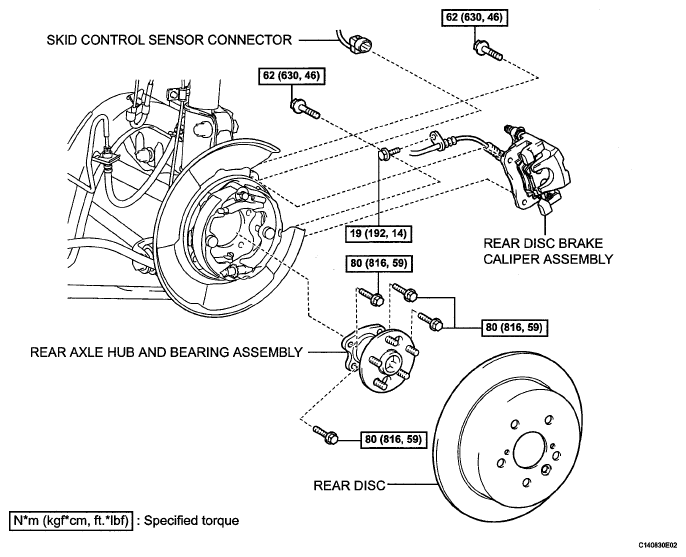

Fig 1: Rear Axle Hub And Bearing Replacement Components With Torque Specifications
G05250092Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
