Clock with Navigation System: Notes

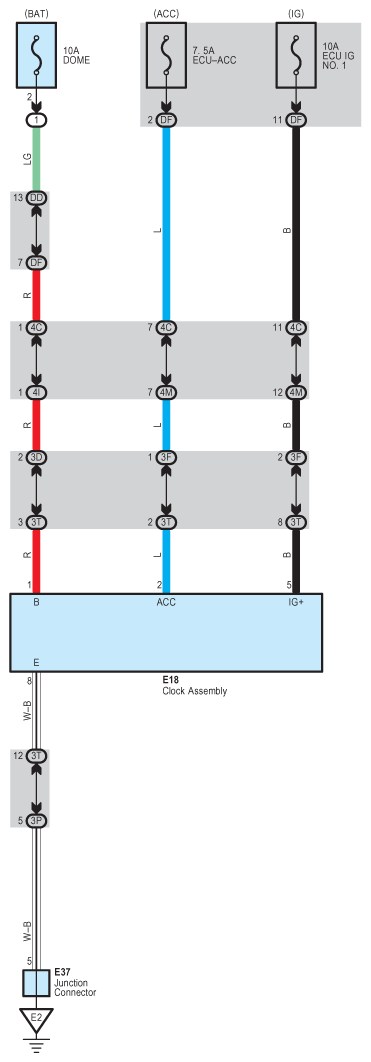

Fig 1: Clock With Navigation System Wiring Diagram
G08916943Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
