Fuel Lid Opener: Notes

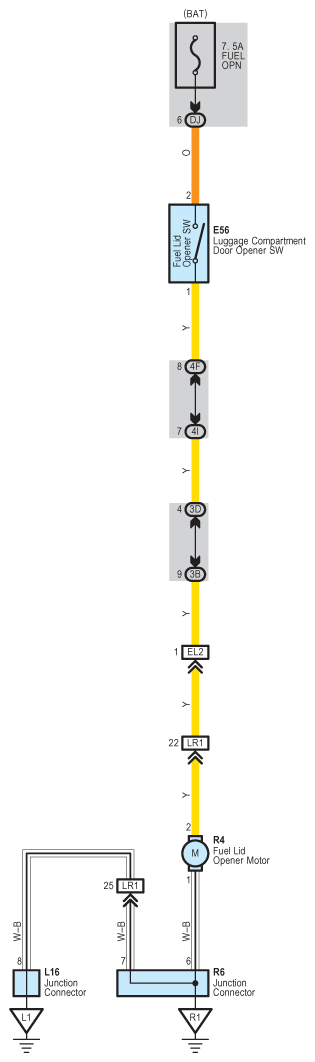

Fig 1: Fuel Lid Opener System Wiring Diagram
G08916911Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
