Parking Assist (Intuitive Parking Assist): Notes

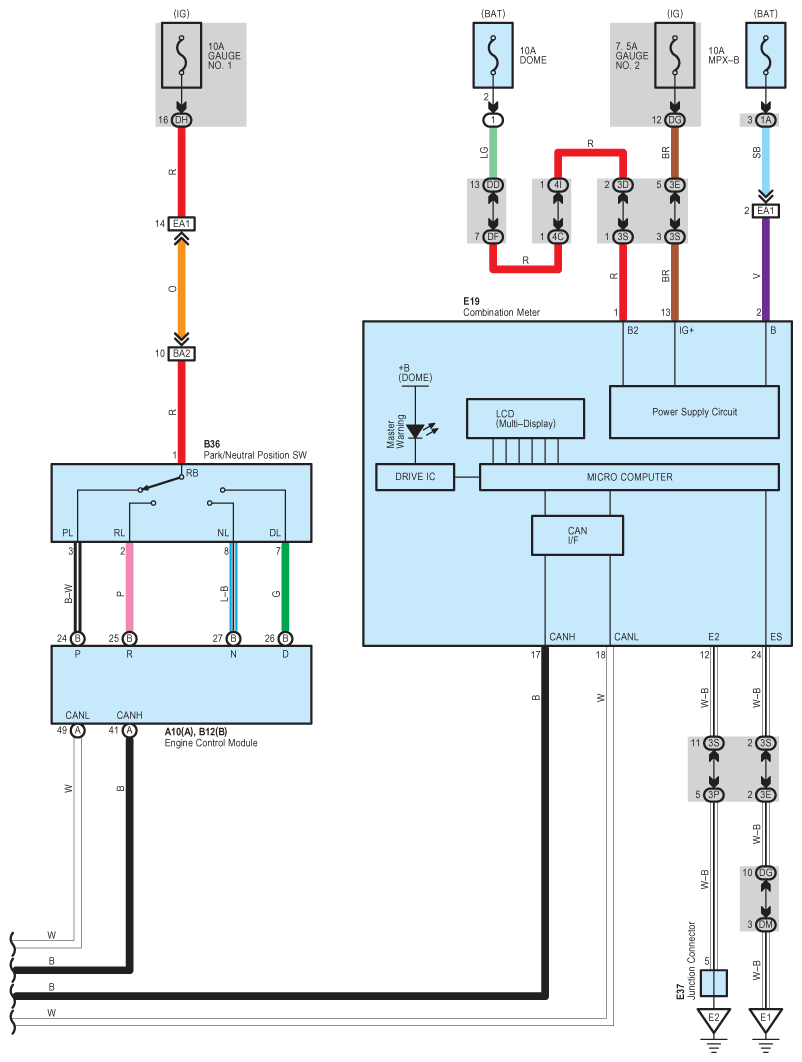

Fig 1: Parking Assist (Intuitive Parking Assist) System Wiring Diagram (1 Of 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

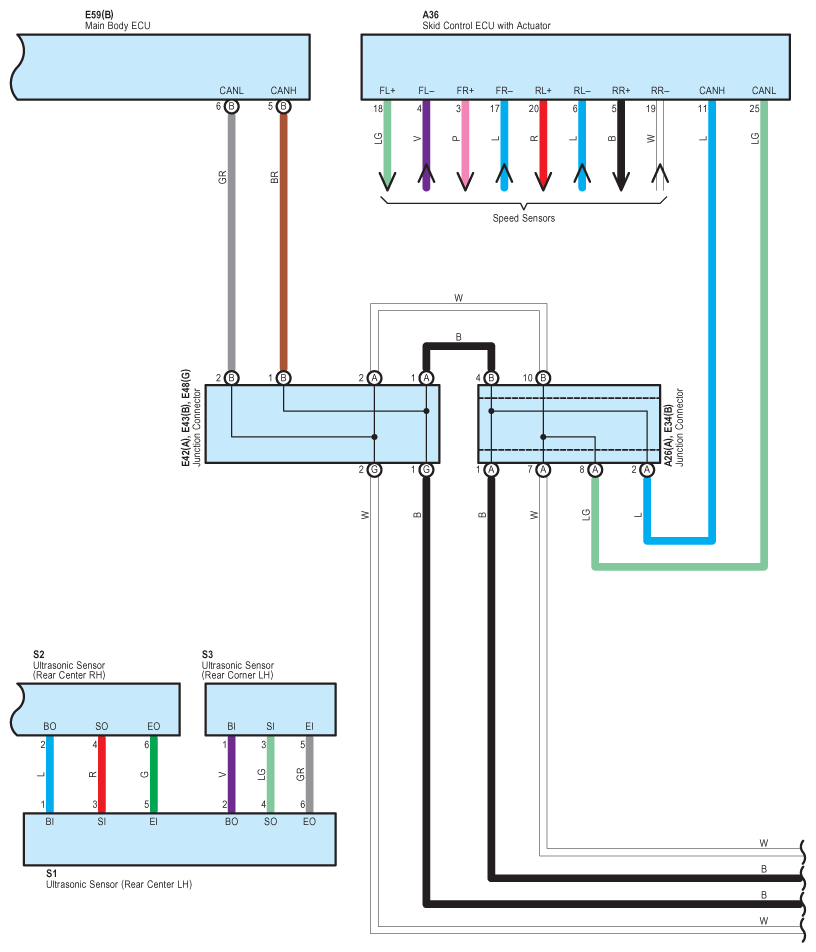

Fig 2: Parking Assist (Intuitive Parking Assist) System Wiring Diagram (2 Of 3)

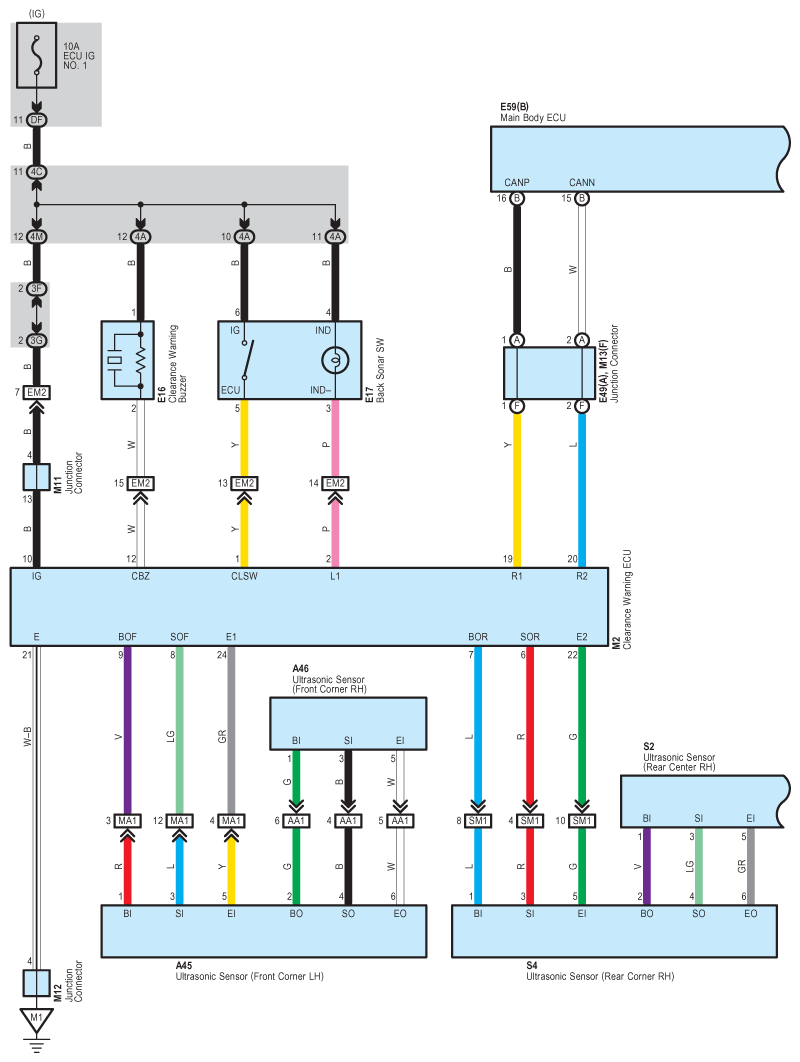

Fig 3: Parking Assist (Intuitive Parking Assist) System Wiring Diagram (3 Of 3)
