Power Seat for Front Passenger's Seat without Memory
›
Notes
Power Seat for Front Passenger's Seat without Memory: Notes

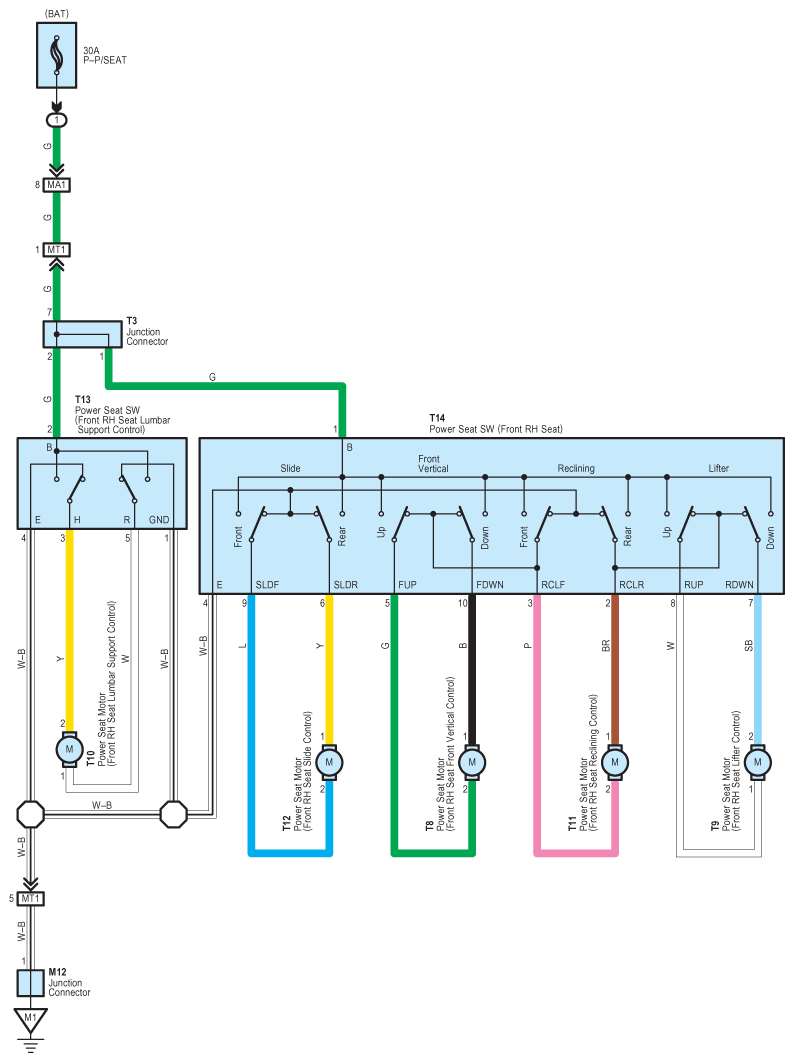

Fig 1: Power Seat For Front Passenger's Seat Without Memory System Wiring Diagram
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
