Rear Window Defogger and Mirror Heater: Notes

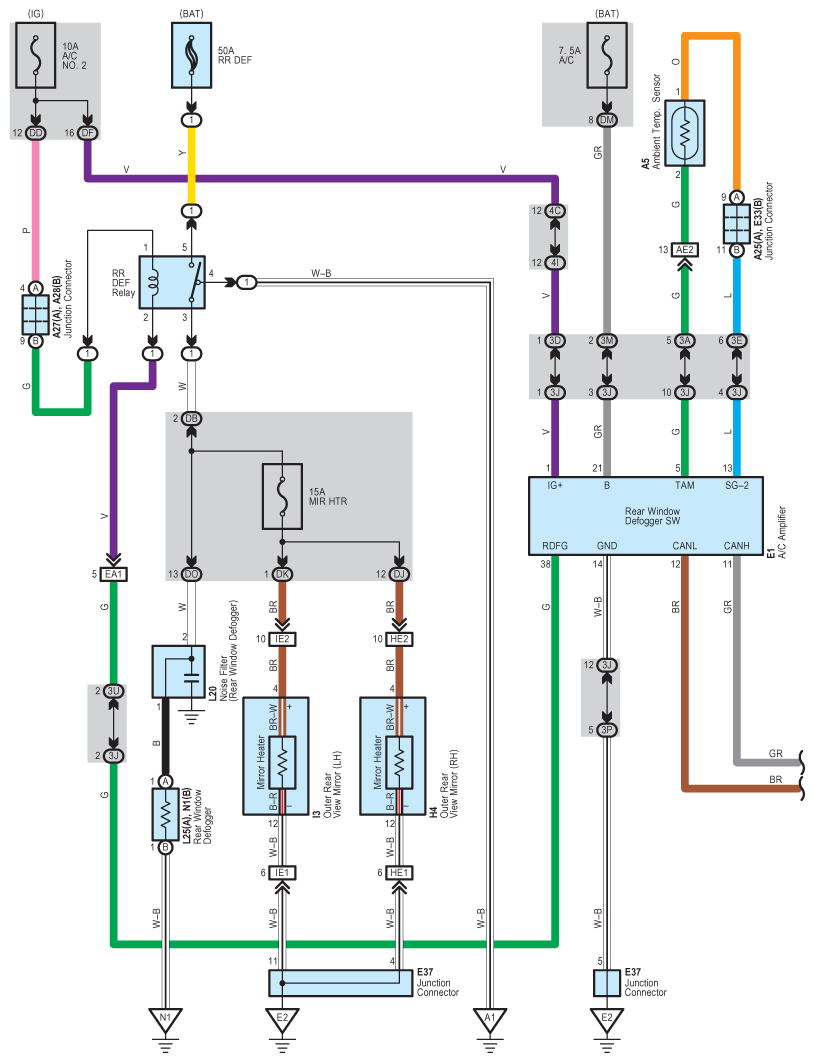

Fig 1: Rear Window Defogger And Mirror Heater System Wiring Diagram (1 Of 2)
G08916941Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 2: Rear Window Defogger And Mirror Heater System Wiring Diagram (2 Of 2)
G08916942Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
