Instrument Panel Safety Pad: Precaution

PRECAUTION FOR VEHICLE WITH SRS AIRBAG AND SEAT BELT PRETENSIONER
1. Some operations in this section may affect the SRS airbags. Prior to performing the corresponding operations, read the SRS airbag NOTICE.
TABLE OF BOLT, SCREW AND NUT

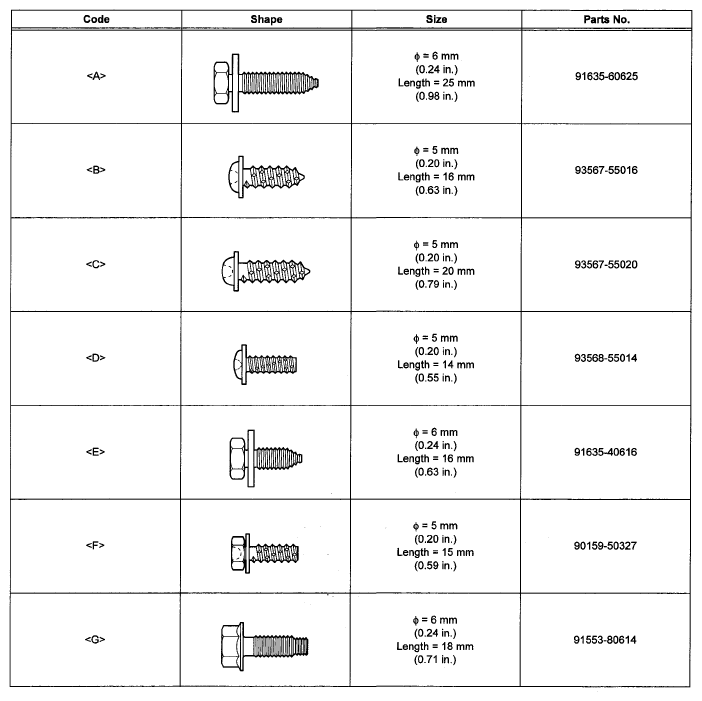

Fig 1: Bolts, Screws And Nuts Specification Chart (1 Of 2)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

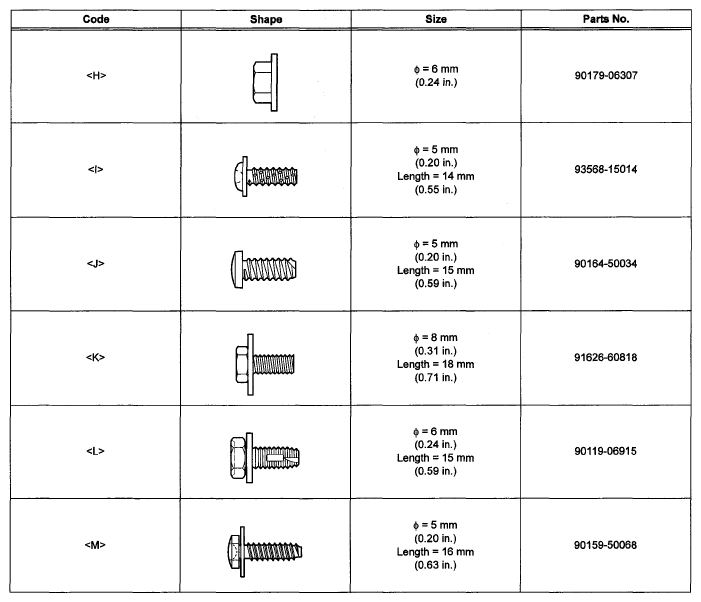

Fig 2: Bolts, Screws And Nuts Specification Chart (2 Of 2)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
