Starting
›
Smart Access System With Push-Button Start
›
DTC B2272 Ignition 1 Monitor Malfunction
›
Wiring Diagram
DTC B2272 Ignition 1 Monitor Malfunction: Wiring Diagram

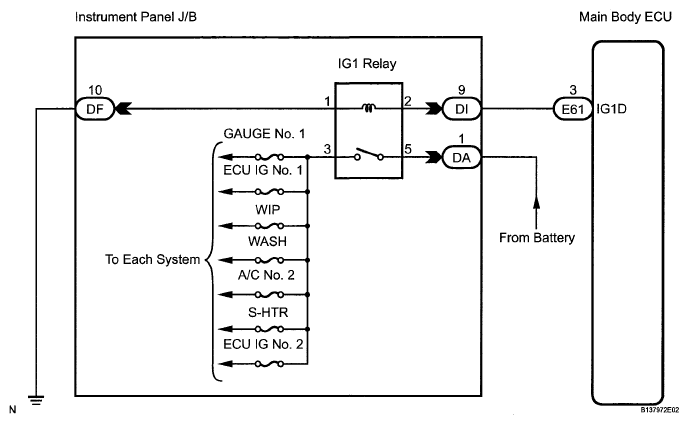

Fig 1: Ignition 1 Relay - Wiring Diagram
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
