Smart Access System With Push-Button Start
›
DTC B2284 Brake Signal Malfunction
›
Wiring Diagram
DTC B2284 Brake Signal Malfunction: Wiring Diagram

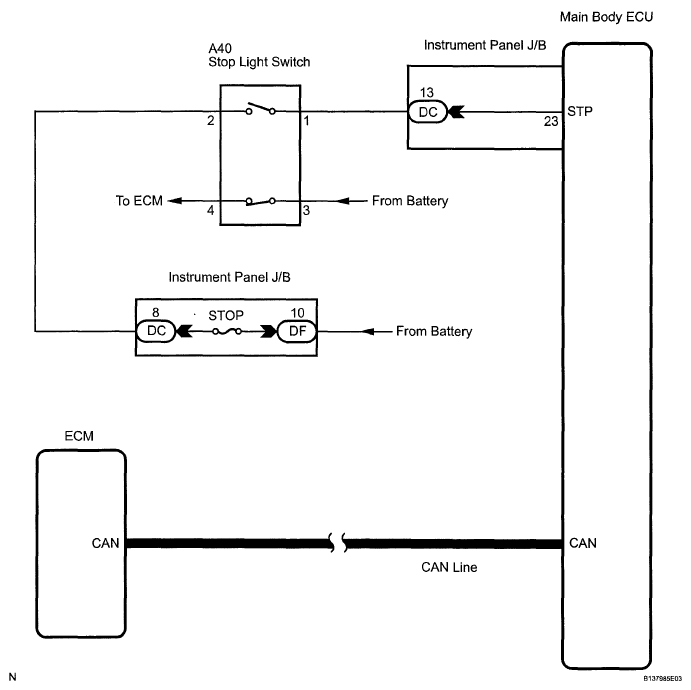

Fig 1: Stop Light Switch - Wiring Diagram
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
