Air Fuel Ratio Sensor: Removal

  1. REMOVE AIR FUEL RATIO SENSOR
    1. Disconnect the 2 air fuel ratio sensor connectors.
    2. Using SST, remove the 2 air fuel ratio sensors from the front pipe assembly.

      SST 09224-00010

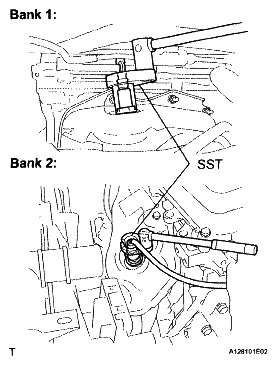

      Fig 1: Identifying Air Fuel Ratio Sensors From Front Pipe Assembly
      G04975183Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
