Vacuum Switching Valve: Components

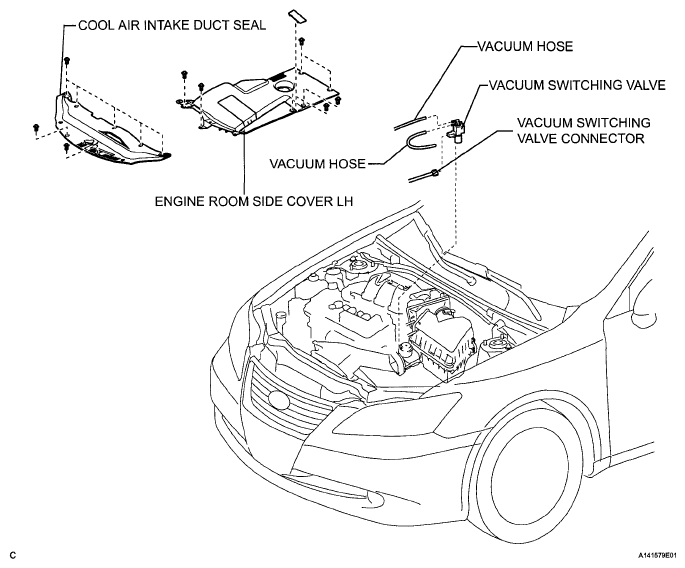

Fig 1: Identifying Vacuum Switching Valve Components

G05248634

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
