Section 53 (Navigation System (Except Hybrid)): Multi-Display: Components

WARNING: This page is about a different car, the 2007 Toyota Camry. However, it is still accessible from the selected car via links, so may be relevant.

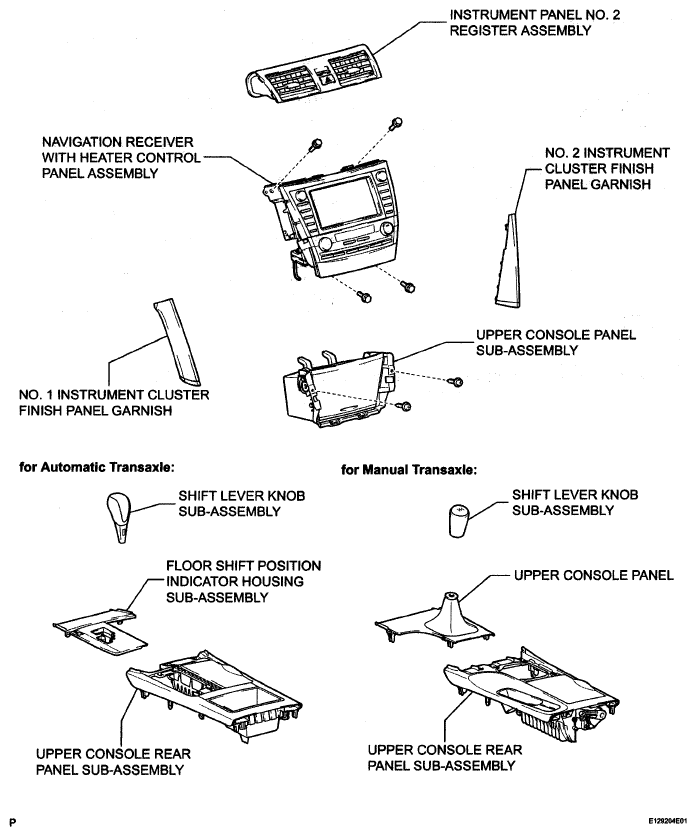

Fig 1: Identifying Multi-Display Components (1 Of 2)
G04980988Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

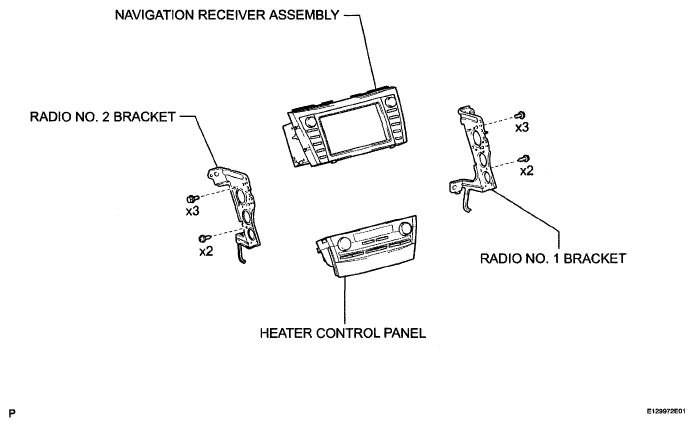

Fig 2: Identifying Multi-Display Components (2 Of 2)
G04980989Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
