Inspection Procedure

WARNING: This page is about a different car, the 2007 Toyota Camry. However, it is still accessible from the selected car via links, so may be relevant.

CHECK HARNESS AND CONNECTOR (RADIO AND NAVIGATION ASSEMBLY-STEREO COMPONENT AMPLIFIER)

Disconnect the radio and navigation assembly connector F10 and stereo component amplifier connector F19.

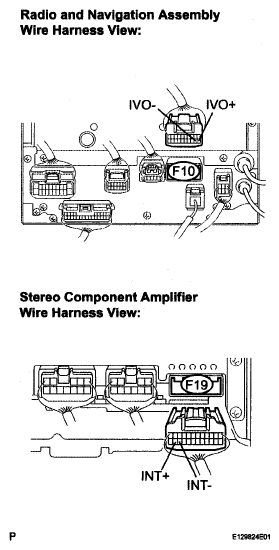

Fig 1: Identifying F10 And F19 Connector Terminals
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Measure the resistance according to the value(s) in the table below.

Standard resistance

RADIO AND NAVIGATION ASSEMBLY-STEREO COMPONENT AMPLIFIER

Tester connection	Condition	Specified condition
IVO+ - INT+	Always	Below 1 Ω
IVO- - INT-	Always	Below 1 Ω
IVO+ - Body ground	Always	10 kΩ or higher
IVO- - Body ground	Always	10 kΩ or higher

NG: REPAIR OR REPLACE HARNESS OR CONNECTOR

OK: PROCEED TO NEXT CIRCUIT INSPECTION SHOWN IN PROBLEM SYMPTOMS TABLE
