Air Conditioning: Condenser: Components

Fig 1: Identifying Condenser Replacement Components With Torque Specification (1 Of 3)
G05248684Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 2: Identifying Condenser Replacement Components With Torque Specifications (2 Of 3)
G05248685Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

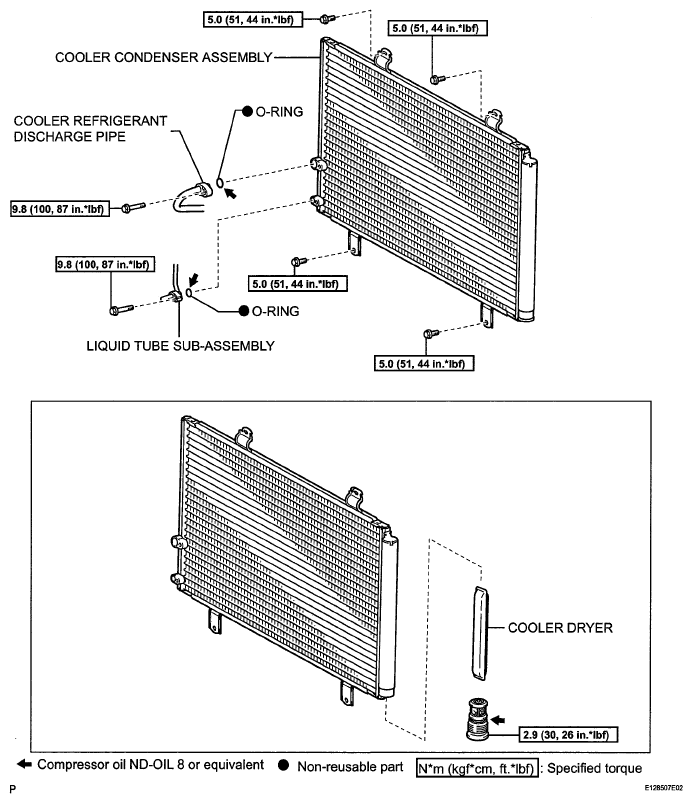

Fig 3: Identifying Condenser Replacement Components With Torque Specifications (3 Of 3)
G05251290Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
