Home › Lexus › 2007 › ES 350 › Repair and Diagnosis › Transmission › Automatic Trans › Automatic Transaxle › Differential Case › Components

Differential Case: Components

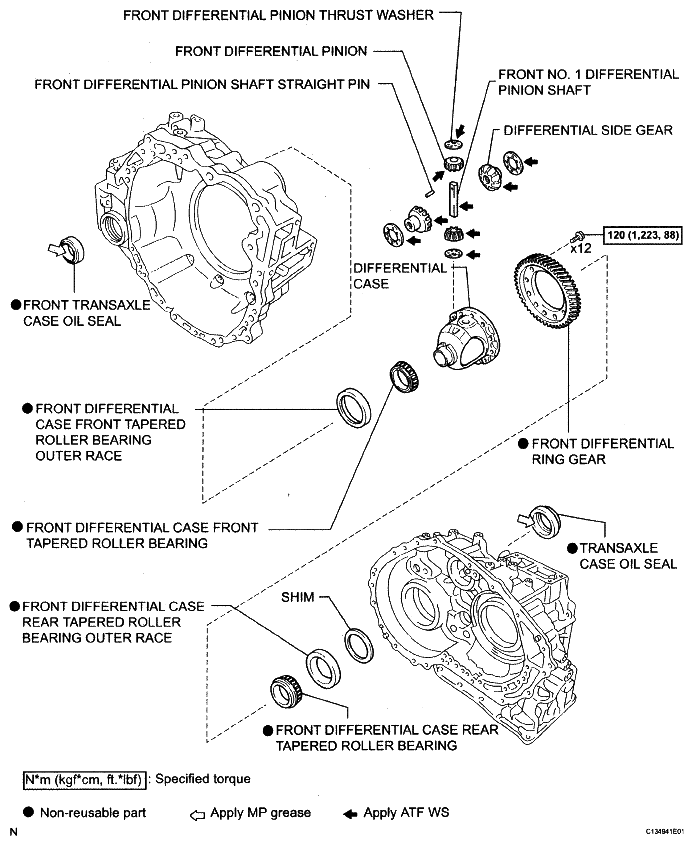

Fig 1: Differential Case Replacement Components With Torque Specifications
G04977066Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
