Differential Oil Seal: Components

Fig 1: Differential Oil Seal Replacement Components With Torque Specifications (1 Of 2)
G04975987Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

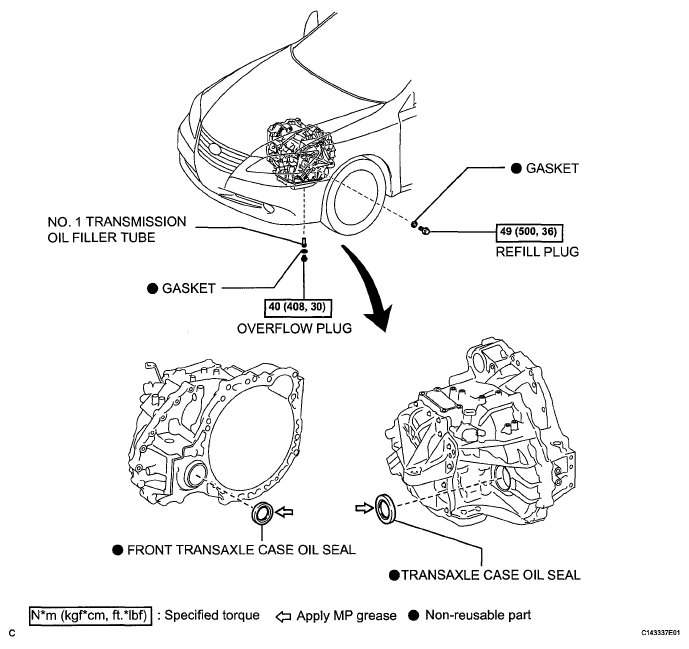

Fig 2: Differential Oil Seal Replacement Components With Torque Specifications (2 Of 2)
G05249609Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
