Oil Pump: Components

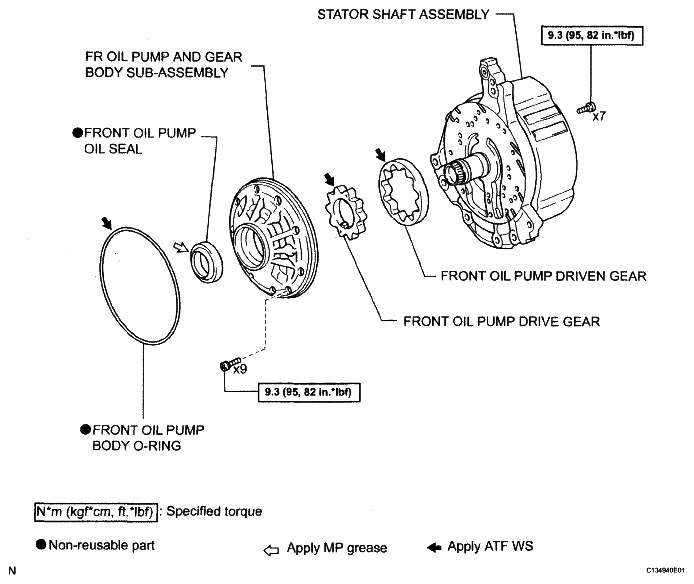

Fig 1: Oil Pump Replacement Components With Torque Specifications
G04977021Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
