Shift Lever: Components

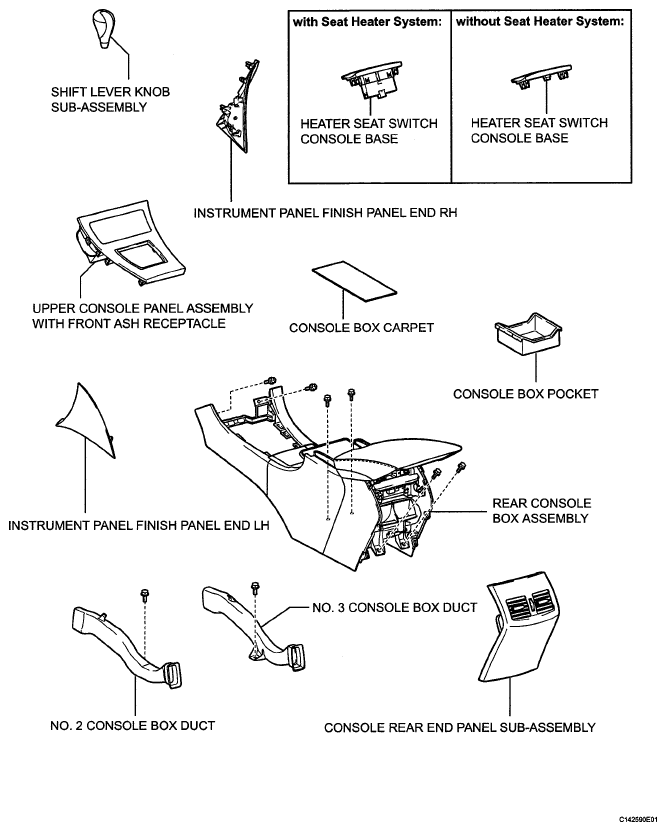

Fig 1: Identifying Shift Lever Replacement Components (1 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

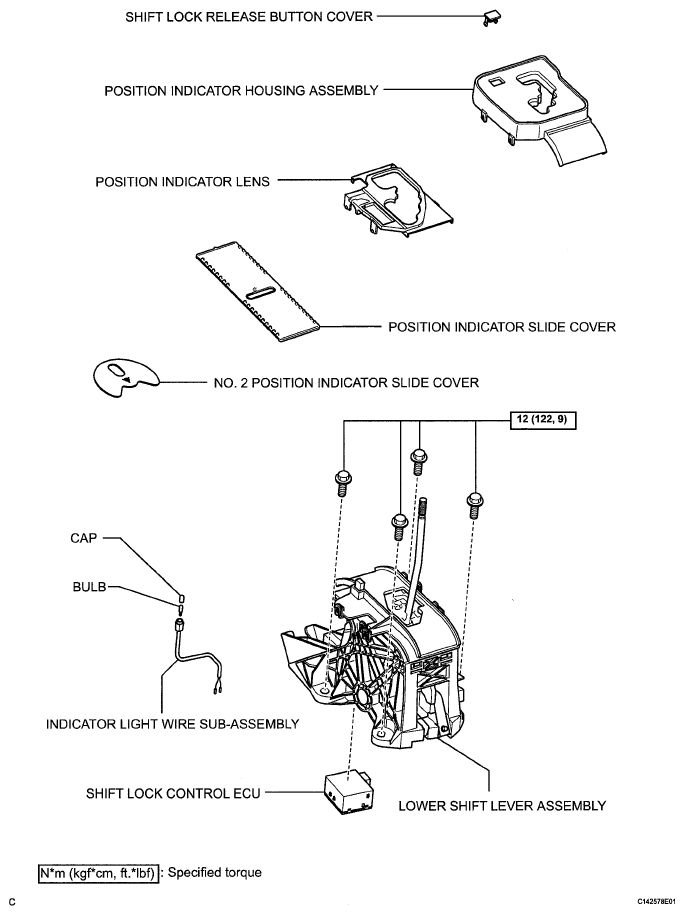

Fig 2: Identifying Shift Lever Replacement Components With Torque Specification (2 Of 2)
