Parts Location

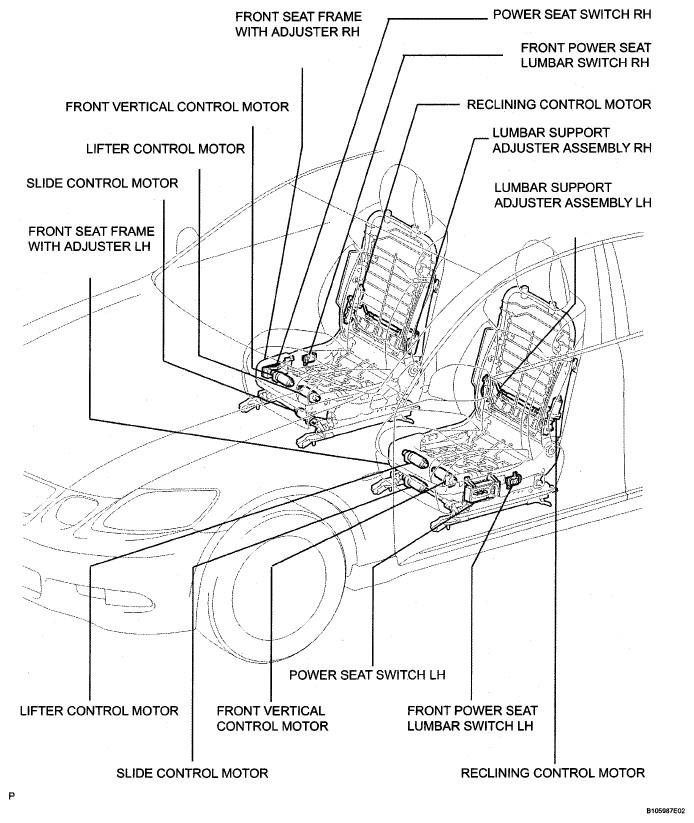

Fig 1: Identifying Front Power Seat Control System Components Location (1 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

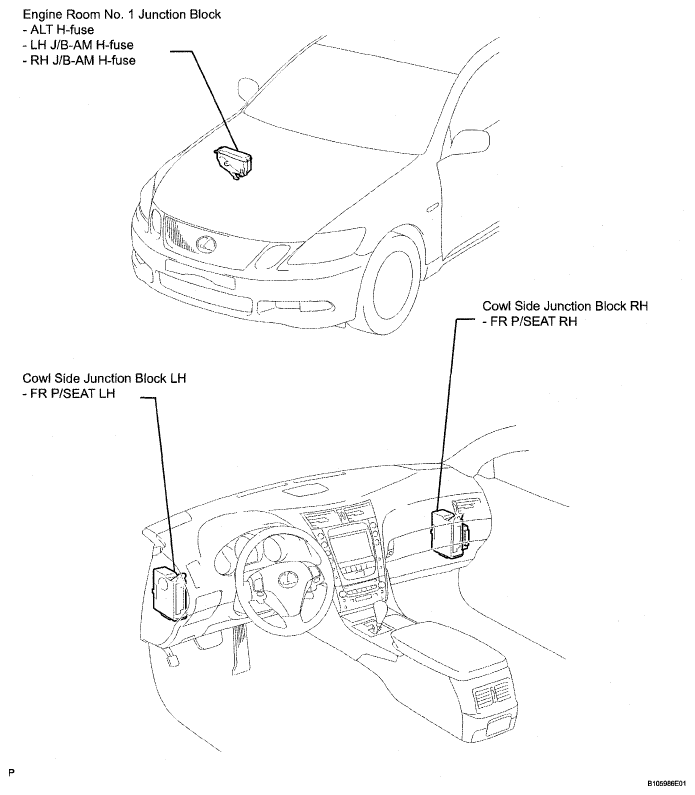

Fig 2: Identifying Front Power Seat Control System Components Location (2 Of 2)
