VSC Warning Light Remains ON: Wiring Diagram

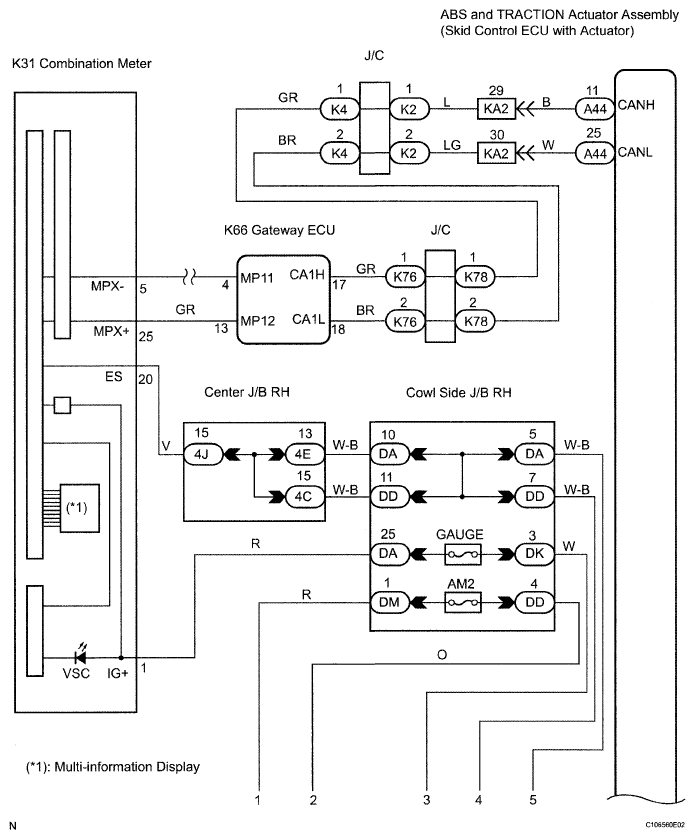

Fig 1: VSC Warning Light - Wiring Diagram (1 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

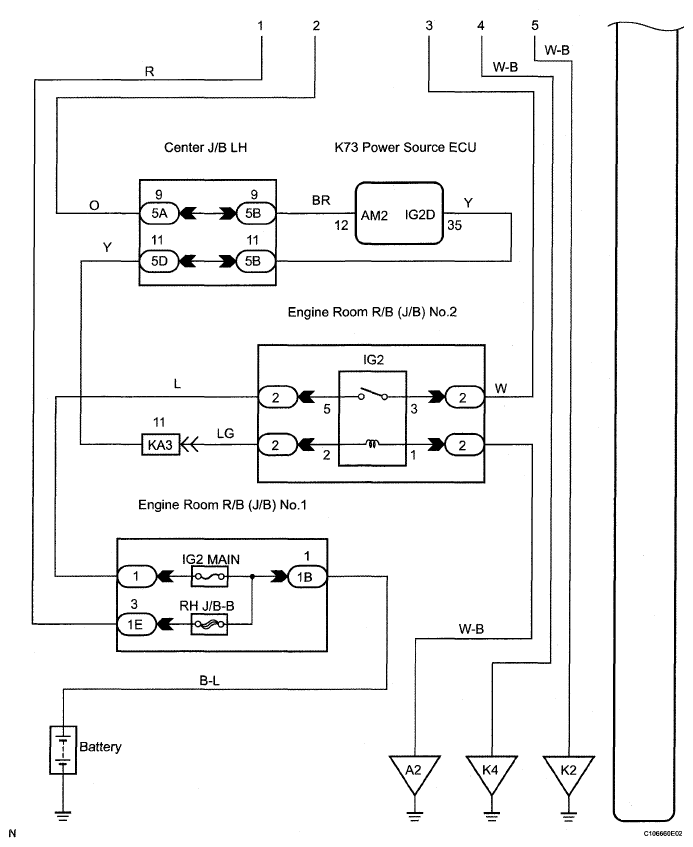

Fig 2: VSC Warning Light - Wiring Diagram (2 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
