Transfer Valve Body Assembly: Components

WARNING: This page is about a different variant/trim than selected.

Fig 1: Transfer Valve Body Assembly Replacement Components With Torque Specifications (1 Of 2)

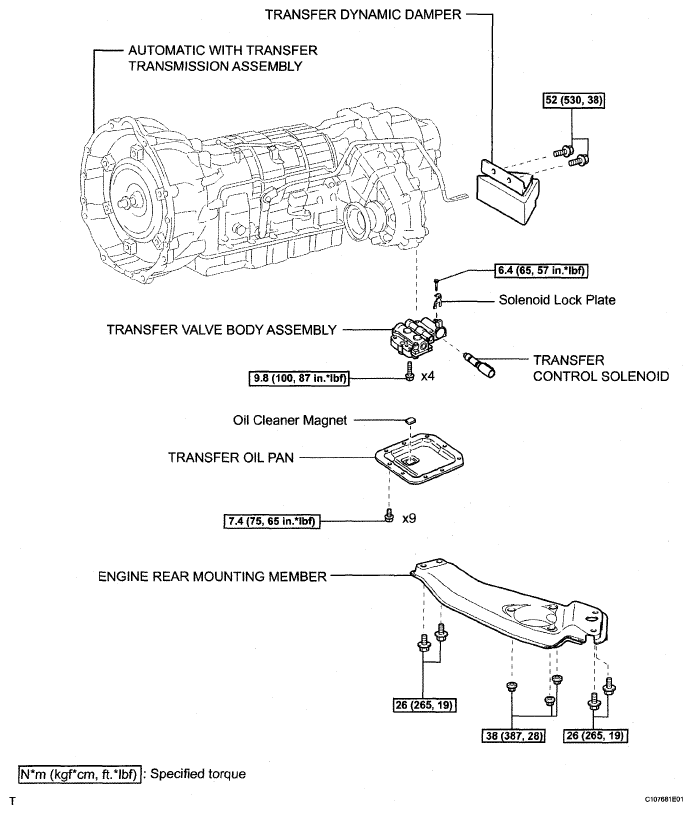

Fig 2: Transfer Valve Body Assembly Replacement Components With Torque Specifications (2 Of 2)
