Section 2 (Transfer Case)
›
Transfer Wire
›
Components
Transfer Wire: Components
WARNING:
This page is about a different variant/trim than selected.
Fig 1: Transfer Wire Replacement Components With Torque Specifications (1 Of 2)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

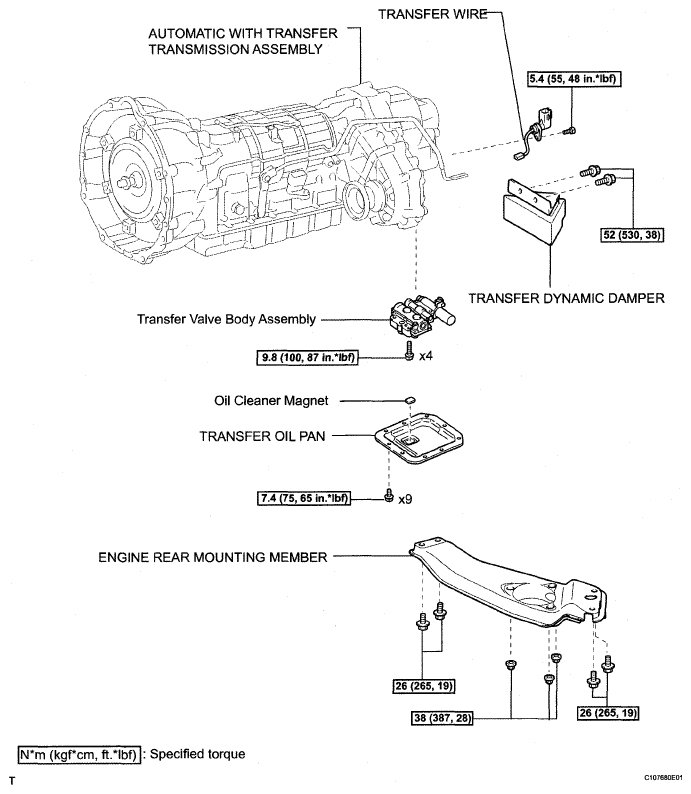

Fig 2: Transfer Wire Replacement Components With Torque Specifications (2 Of 2)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
