Headlight Assembly: Components

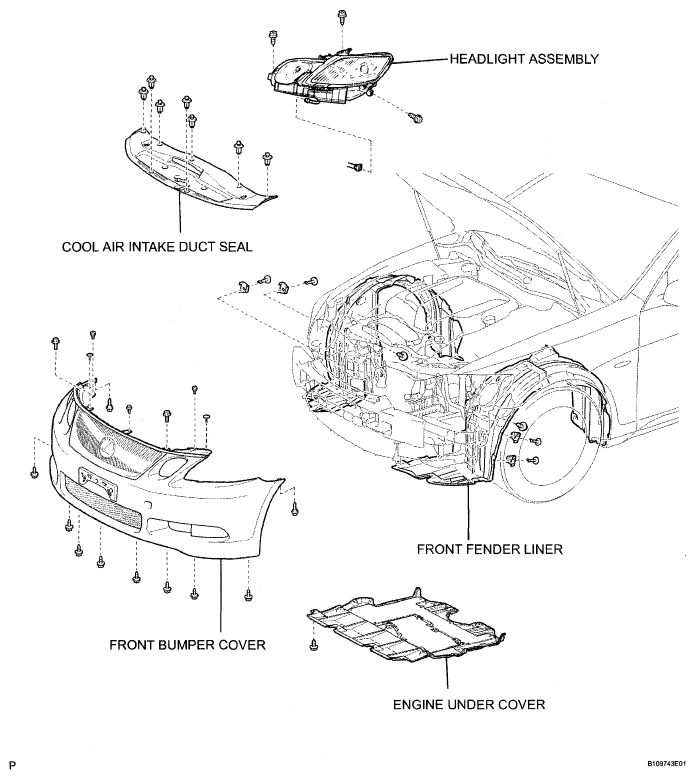

Fig 1: Identifying Headlight Assembly Components (1 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

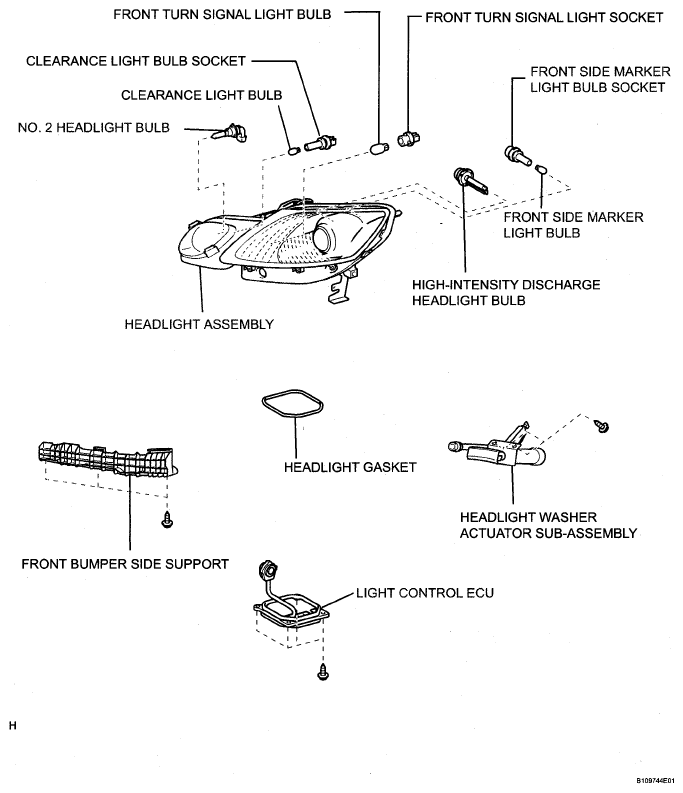

Fig 2: Identifying Headlight Assembly Component (2 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
