Inspection Procedure
- CHECK WIRE HARNESS (HEADLIGHT BEAM LEVEL CONTROL ECU - HEADLIGHT)

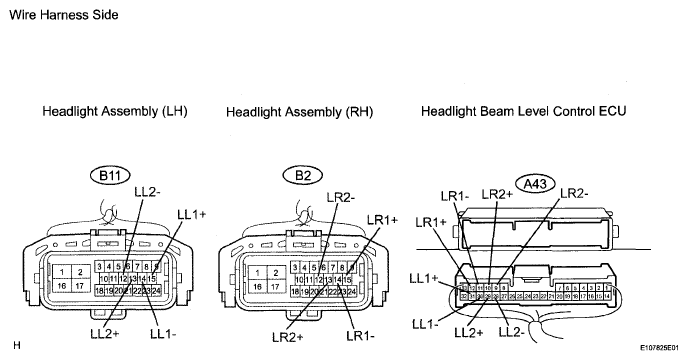

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
- Disconnect the headlight connector on the headlight beam level control motor side and headlight beam level control ECU connector.
- Measure the resistance of the wire harness side connectors.
Standard resistance
LH side
RESISTANCE SPECIFICATIONTester Connection Condition Specified Condition A43-28 (LL2-) - B11-12 (LL2-) Always Below 1 Ω A43-29 (LL2+) - B11-13 (LL2+) Always Below 1 Ω A43-30 (LL1-) - B11-14 (LL1-) Always Below 1 Ω A43-31 (LL1+) - B11-15 (LL1+) Always Below 1 Ω A43-28 (LL2-) or B11-12 (LL2-) - Body ground Always 10 kΩ or higher A43-29 (LL2+) or B11-13 (LL2+) - Body ground Always 10 kΩ or higher A43-30 (LL1-) or B11-14 (LL1-) - Body ground Always 10 kΩ or higher A43-31 (LL1+) or B11-15 (LL1+) - Body ground Always 10 kΩ or higher RH side
RESISTANCE SPECIFICATIONTester Connection Condition Specified Condition A43-9 (LR2-) - B2-12 (LR2-) Always Below 1 Ω A43-10 (LR2+) - B2-13 (LR2+) Always Below 1 Ω A43-11 (LR1-) - B2-14 (LR1-) Always Below 1 Ω A43-12 (LR1+) - B2-15 (LR1+) Always Below 1 Ω A43-9 (LR2-) or B2-12 (LR2-) - Body ground Always 10 kΩ or higher A43-10 (LR2+) or B2-13 (LR2+) - Body ground Always 10 kΩ or higher A43-11 (LR1-) or B2-14 (LR1-) - Body ground Always 10 kΩ or higher A43-12 (LR1+) or B2-15 (LR1+) - Body ground Always 10 kΩ or higher
NG: REPAIR OR REPLACE HARNESS AND CONNECTOR
OK: Go to next step
- INSPECT HEADLIGHT BEAM LEVEL CONTROL MOTOR
- Measure the resistance of the motor.
Standard resistance
RESISTANCE SPECIFICATIONTester Connection Condition Specified Condition 1 - 2 Always 5.8 to 12.5 Ω 3 - 4 Always 5.8 to 12.5 Ω HINT:
Measure the resistance after the headlight has cooled.
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
NG: REPLACE HEADLIGHT ASSEMBLY
OK: PROCEED TO NEXT CIRCUIT INSPECTION SHOWN IN PROBLEM SYMPTOMS TABLE
- Measure the resistance of the motor.
