System Description
›
Headlight Beam Level Control ECU Power Source Circuit
›
Wiring Diagram
Headlight Beam Level Control ECU Power Source Circuit: Wiring Diagram

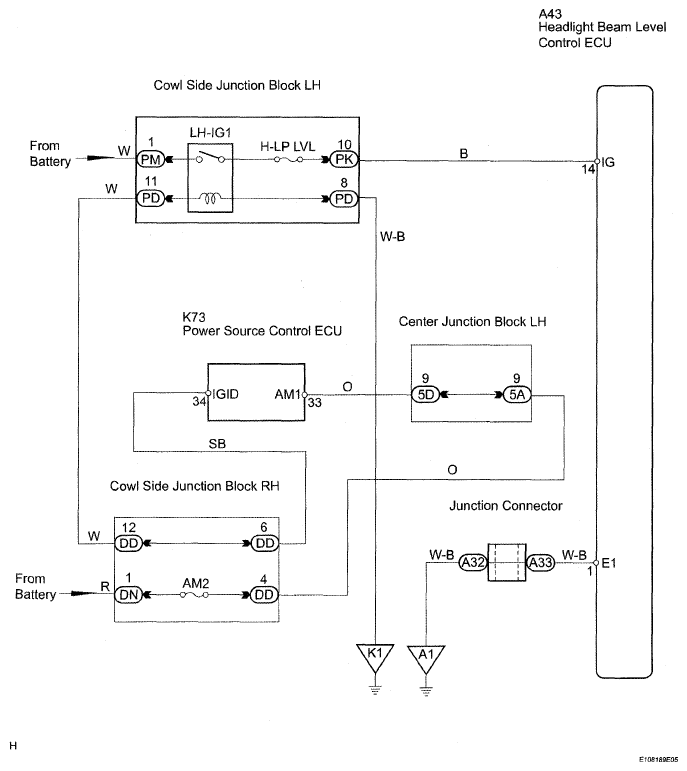

Fig 1: Headlight Beam Level Control ECU Power Source Circuit - Wiring Diagram
