Inspection Procedure

HINT:

After the inspection is completed, clear the DTCs.

1. CHECK HARNESS AND CONNECTOR (MULTI-DISPLAY - TELEVISION CAMERA)

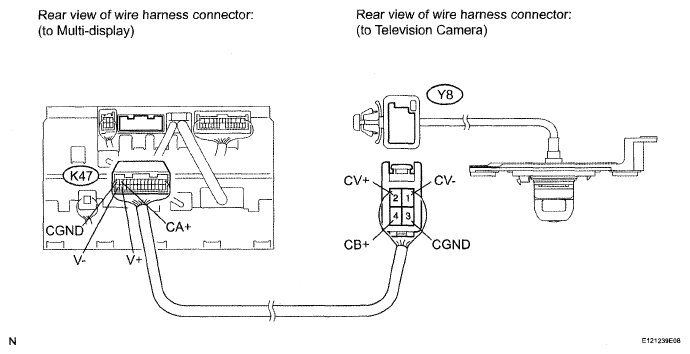

   Fig 1: Checking Harness And Connector (Multi-Display - Television Camera)

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
   1. Disconnect the K47 display connector.
   2. Disconnect the Y8 camera connector.
   3. Measure the resistance according to the value(s) in the table below.

      Standard resistance

      STANDARD RESISTANCE SPECIFICATIONS



      Tester Connection	Switch Condition	Specified Condition
      Y8-4 (CB+) - K47-13 (CA+)	Always	Below 1 Ω
      Y8-3 (CGND) - K47-14 (CGND)	Always	Below 1 Ω
      Y8-2 (CV+) - K47-27 (V+)	Always	Below 1 Ω
      Y8-1 (CV-) - K47-28 (V-)	Always	Below 1 Ω
      Y8-4 (CB+) - Body ground	Always	10 kΩ or higher
      Y8-3 (CGND) - Body ground	Always	10 kΩ or higher
      Y8-2 (CV+) - Body ground	Always	10 kΩ or higher
      Y8-1 (CV-) - Body ground	Always	10 kΩ or higher

   NG: REPAIR OR REPLACE HARNESS OR CONNECTOR

   OK: Go to next step

2. CHECK MULTI-DISPLAY (CA+ VOLTAGE)
   1. Measure the voltage according to the value(s) in the table below.

      Standard voltage

      STANDARD VOLTAGE SPECIFICATIONS



      Tester Connection	Condition	Specified Condition
      K47-13 (CA+) - K47-14 (CGND)	Engine switch on (IG), shift lever in R position	Approx. 6 V

   Fig 2: Identifying K47 Connector Terminals

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   NG: REPLACE MULTI-DISPLAY

   OK: REPLACE TELEVISION CAMERA ASSEMBLY
