Smart Access System With Push-Button Start
›
Room Oscillator does not Recognize Key
›
Wiring Diagram
Room Oscillator does not Recognize Key: Wiring Diagram

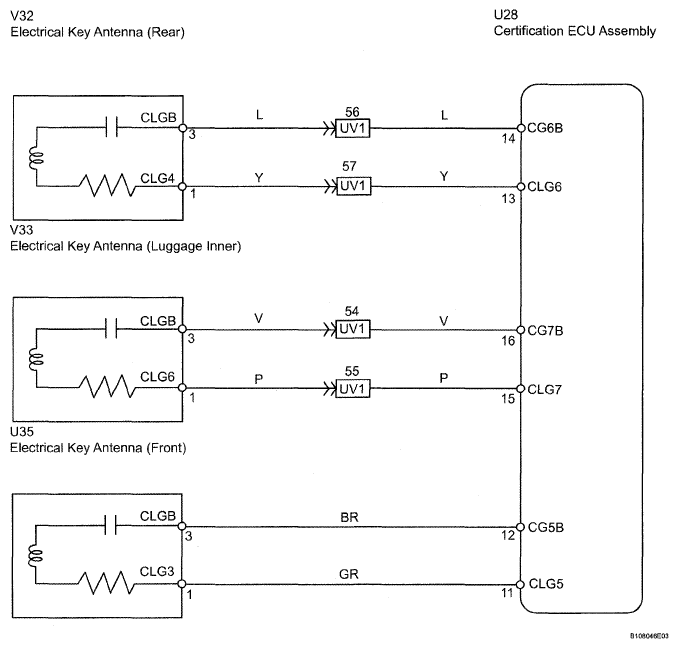

Fig 1: Electrical Key Antenna - Wiring Diagram
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
