System Diagram

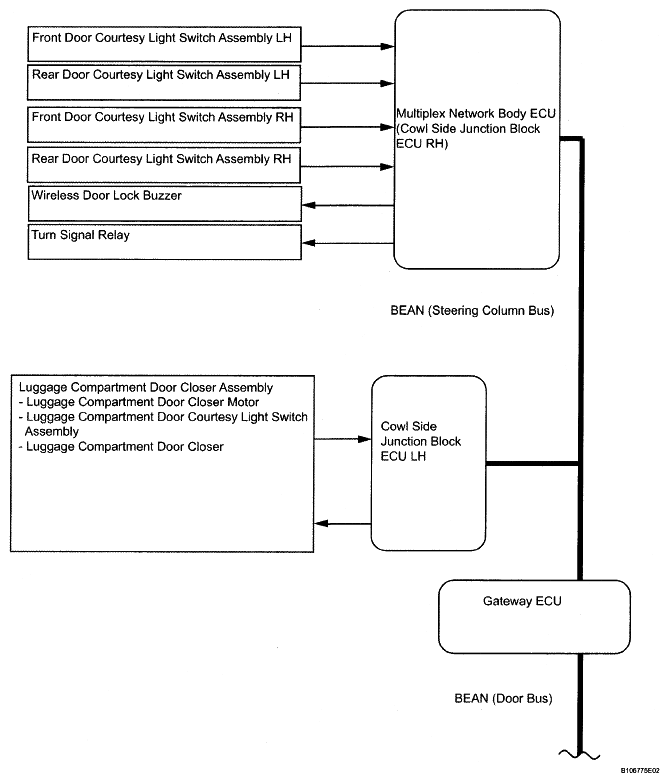

Fig 1: Wireless Door Lock Control System Diagram (1 Of 2)

G05299197

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

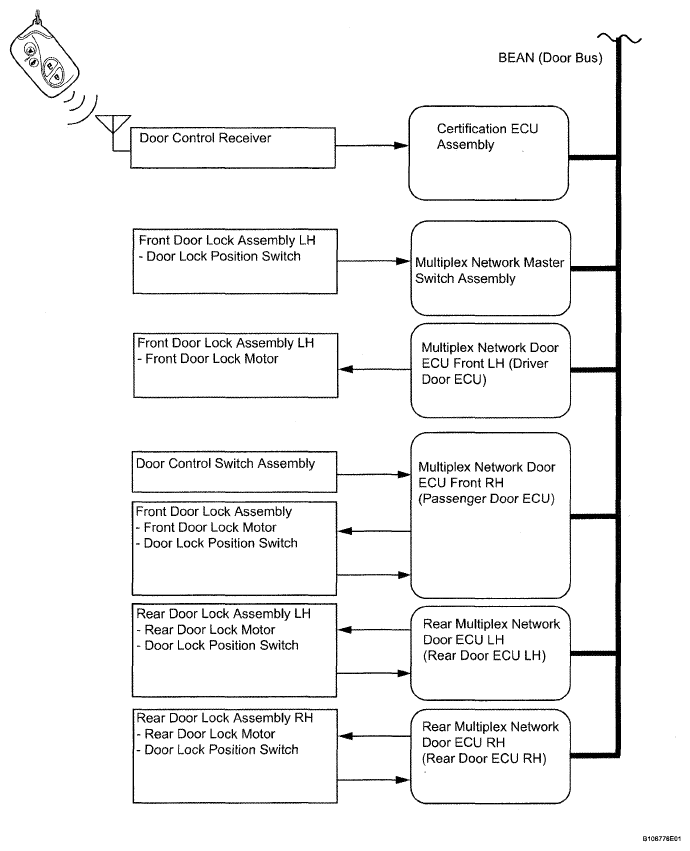

Fig 2: Wireless Door Lock Control System Diagram (2 Of 2)

G05299198

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Communication table

COMMUNICATION CHART

Sender	Receiver	Signal	Line
Multiplex Network Body ECU	Multiplex Network Door ECU Front LH	Wireless door lock control signal Wireless power window signal Driver side door courtesy light switch signal Driver side door lock control signal	BEAN
Multiplex Network Body ECU	Multiplex Network Door ECU Front LH	Wireless door lock control signal Front passenger side door courtesy light switch signal Front passenger side door lock control signal	BEAN
Multiplex Network Body ECU	Multiplex Network Door ECU Front LH	Wireless door lock control signal Rear LH door side courtesy light switch signal Rear LH door lock control signal	BEAN
Multiplex Network Body ECU	Multiplex Network Door ECU Front LH	Wireless door lock control signal Rear RH door side courtesy light switch signal Rear RH door lock control signal	BEAN
Multiplex network Rear ECU	Cowl side Junction Block ECU	Luggage compartment door courtesy light switch signal	BEAN
