Engine Immobilizer
›
Engine Immobiliser System
›
ID Code Box Power Source Circuit
›
Wiring Diagram
ID Code Box Power Source Circuit: Wiring Diagram

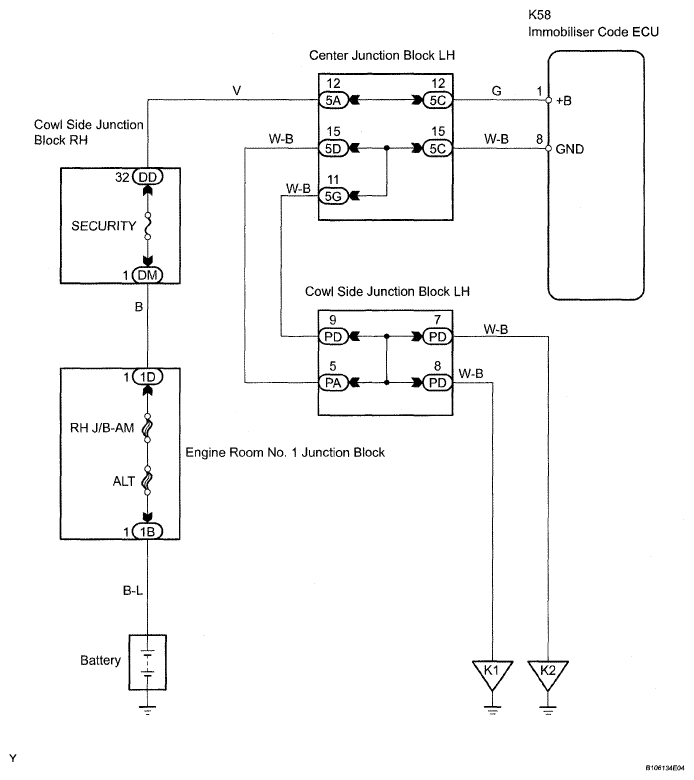

Fig 1: ID Code Box Power Source Circuit - Wiring Diagram
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
