Roof Headlining: Components

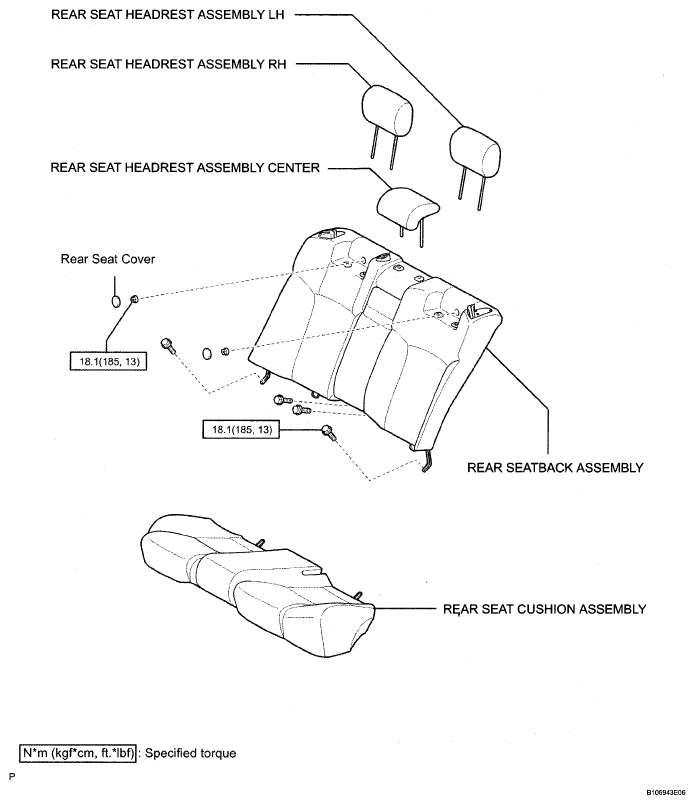

Fig 1: Roof Headlining Replacement Components With Torque Specifications (1 Of 7)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

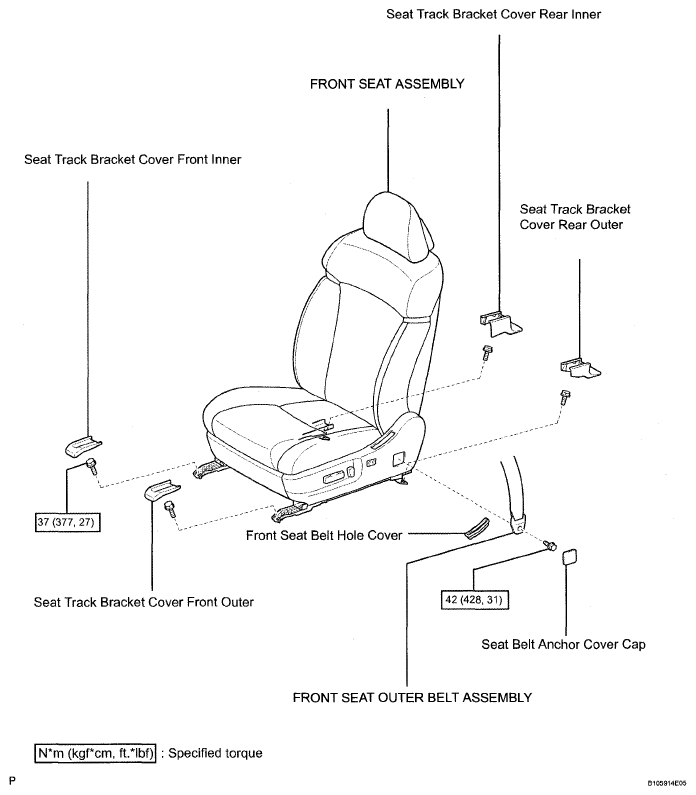

Fig 2: Roof Headlining Replacement Components With Torque Specifications (2 Of 7)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

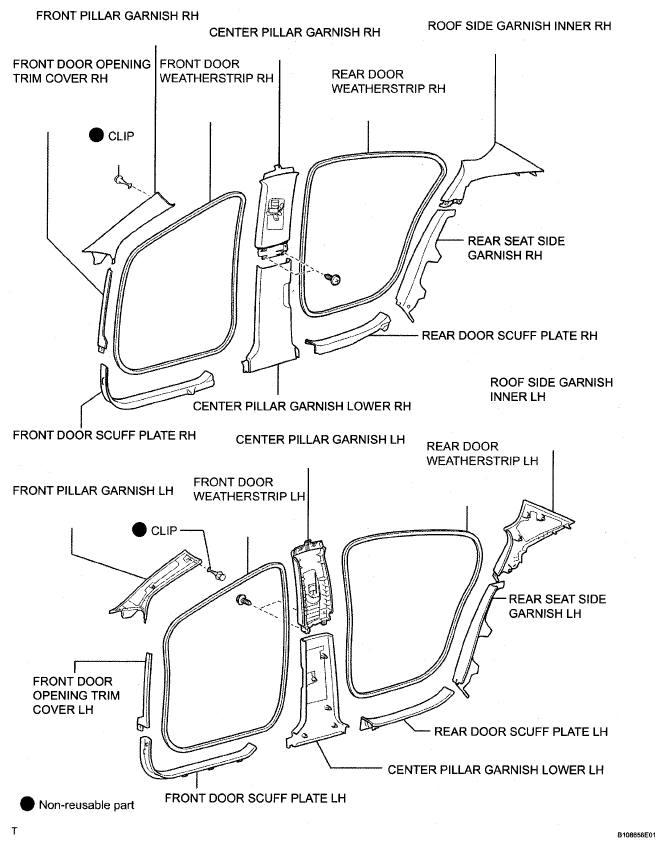

Fig 3: Identifying Roof Headlining Components (3 Of 7)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 4: Identifying Roof Headlining Components (4 Of 7)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

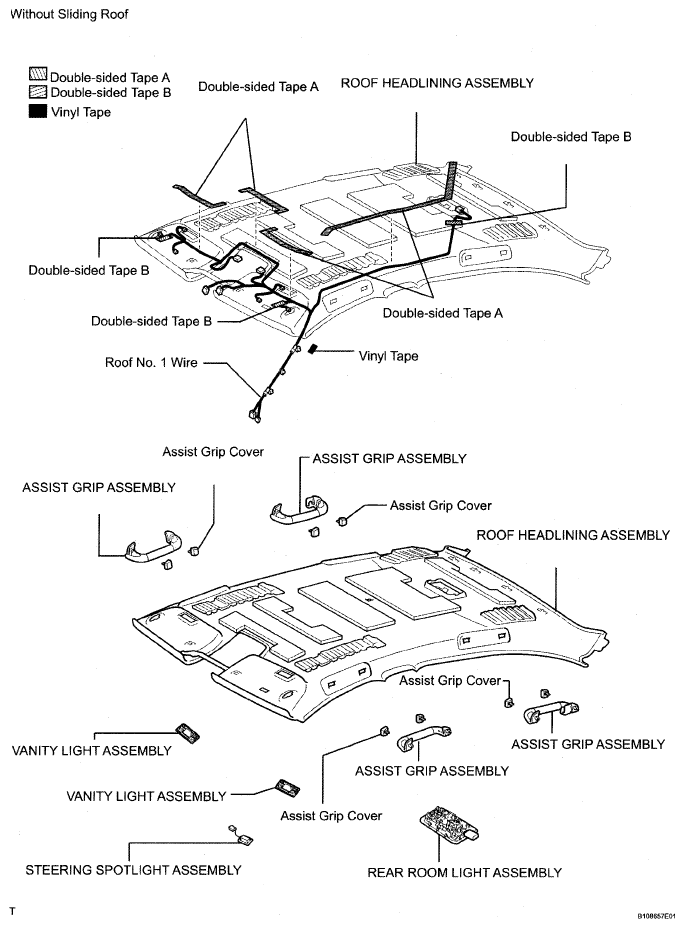

Fig 5: Identifying Roof Headlining Components (5 Of 7)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

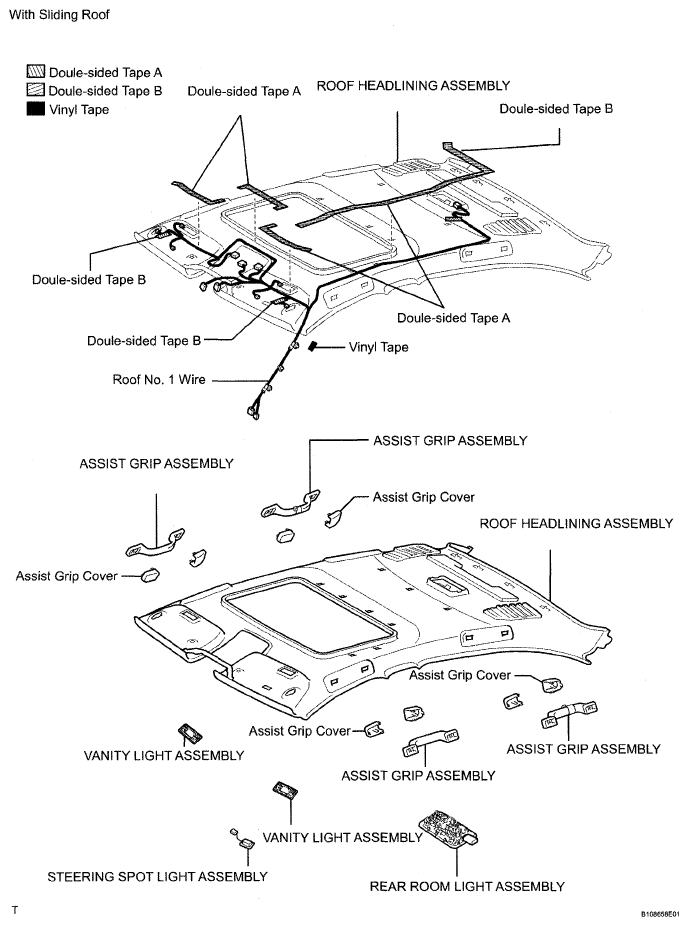

Fig 6: Identifying Roof Headlining Components (6 Of 7)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

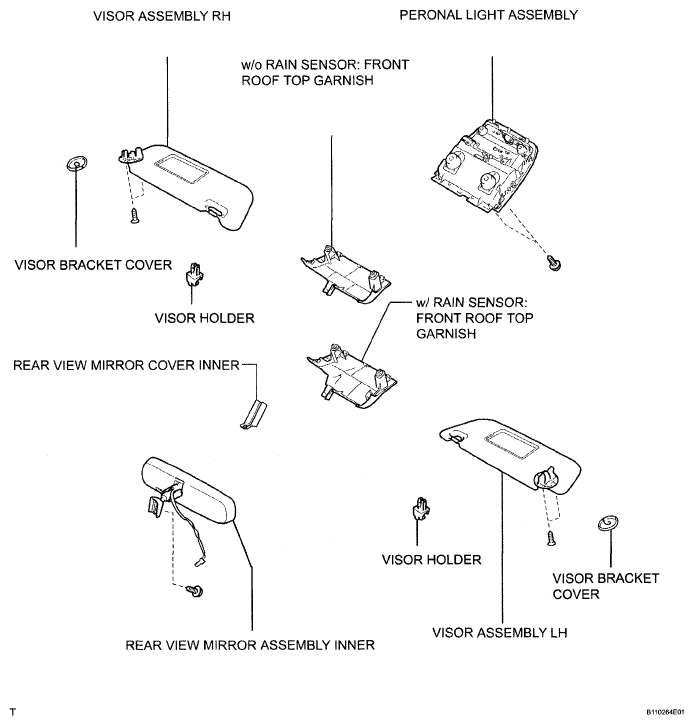

Fig 7: Identifying Roof Headlining Components (7 Of 7)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
