Roof Headlining: Installation

1. Only when replacing the roof headlining.

   Install the roof wire.

   HINT:

   When removing peeling paper from double-sided tape, do not allow foreign matter to contact the tape's adhesive.

   1. Remove the peeling paper from one side of double-sided tape A.
   2. Attach double-sided tape A to the marks on the roof headlining, as shown in the illustrations below.
   3. Remove peeling paper from the other side of double-sided tape A.
   4. Align the wire harness to double-sided tape A. Also, align the marking tape areas of the wire harness to the marks on the roof headlining (see A, B and C in the illustrations below). Temporarily attach the wire harness to the roof headlining.
   5. Remove peeling paper from one side of double-sided tape B. Secure the wire harness to the roof headlining by attaching double-sided tape B to the wire harness and marks on the roof headlining, as shown in A, B and C in the illustrations below.
   6. Align the marking tape area of the wire harness to the roof headlining installation part, as shown in D in the illustrations below. Wrap tape around the wire harness and installation part.
   7. Attach the claw of the vanity light assembly to install it.
      CAUTION: Securely install the roof No. 1 wire. If there is any slack, noise will occur.

Fig 1: Detaching Claw And Vanity Light Assembly

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

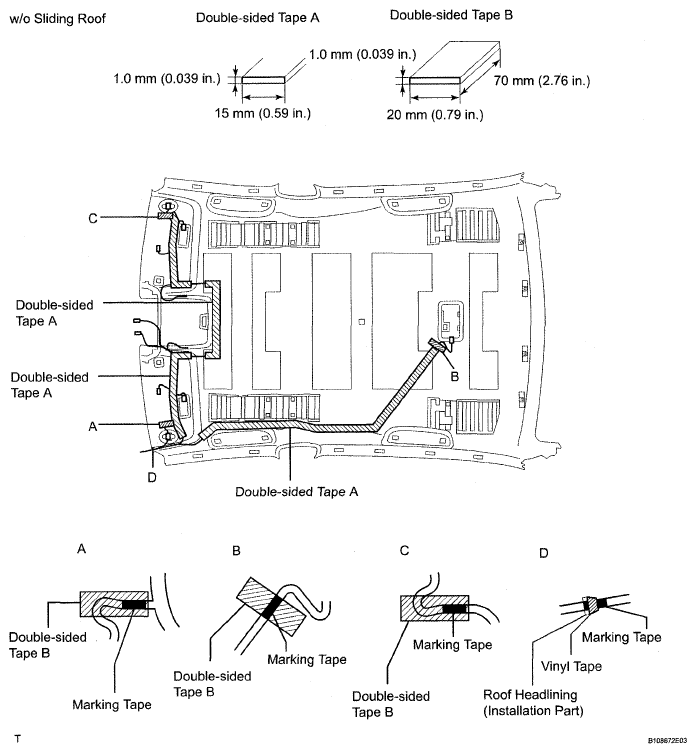

Fig 2: Identifying Double-Sided Tape Sections With Dimensions - W/O Sliding Roof

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

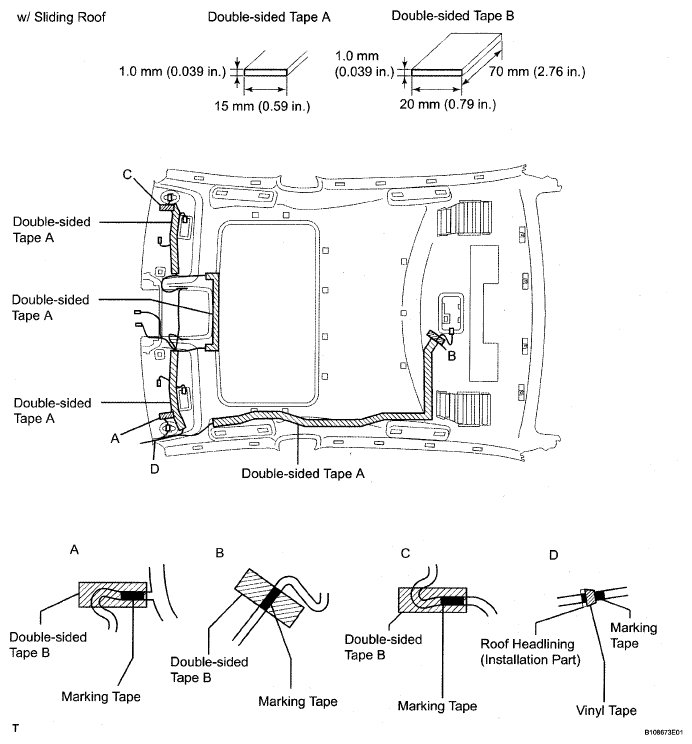

Fig 3: Identifying Double-Sided Tape Sections With Dimensions - W/ Sliding Roof

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Apply double-sided tape to the pads.
2. Align the pads with the markings on the roof headlining, and then install the pads.

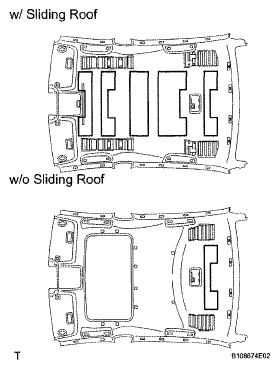

   Fig 4: Identifying Roof Headlining Assembly Pads

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Only when replacing the sliding roof housing:
   1. Remove the 11 fasteners from the removed sliding roof housing, and attach them to the roof headlining.
4. Place the roof headlining in the through from the rear door.
5. Without sliding roof:

   Attach the 2 hooks and 4 clips to the vehicle body.

6. With sliding roof:

   Attach the hook, claw and 4 clips to the vehicle body.

7. Only when replacing the roof headlining:

   Remove the 11 fasteners from the removed roof headlining, and attach them to the new roof headlining.

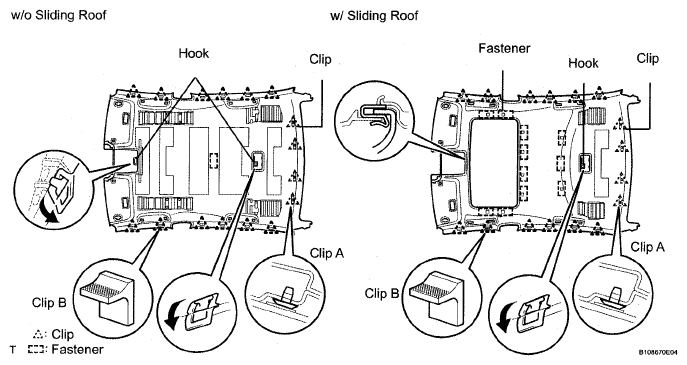

   Fig 5: Locating Fasteners

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
8. Attach the clips on the rear side of the vehicle.
9. With sliding roof:

   Install the roof headlining to the sliding roof housing.

10. Attach the clamp of the roof wire to the front pillar garnish LH. Then connect the connector.
11. With sliding roof:

    Connect the connector to the sliding roof drive gear.

Fig 6: Connecting Connector To Sliding Roof Drive Gear

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Install the visor with the 2 screws.

1. Install the visor with the 2 screws.

1. Attach the 4 claws to install the cover.

1. Connect the connector.
2. Attach the 2 claws to install the spotlight.

1. Connect the connector.
2. Attach the 4 claws to install the room light to the vehicle body.

1. Connect the connector.
2. Attach the 3 claws and 2 clips, and install the personal light.
3. Install the 2 screws and 2 covers to personal light.

1. Attach the 3 claws and 2 clips, and install the top garnish.

1. Attach the 2 claws and 4 clips, and install the garnish.

HINT:

Use the same procedures described for the LH side.

1. Attach the 5 claws and install the garnish.
2. Pull out the folded lip of the weather strip.

HINT:

Use the same procedures described for the LH side.

1. Attach the 2 claws to install the garnish.
2. Install the 2 screws.
3. Pull out the folded of the weather strip.

HINT:

Use the same procedures described for the LH side.

1. Attach the 2 claws and 5 clips to install the garnish.
2. Pull out the folded of the weather strip.

HINT:

Use the same procedures described for the LH side.

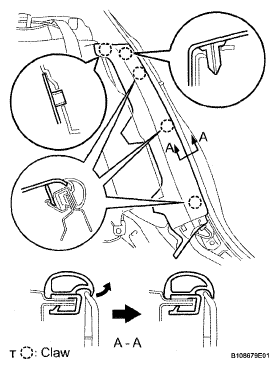

Fig 7: Installing Rear Seat Side Garnish Claws And Clips

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Attach the 5 claws to install the scuff plate.
   Fig 8: Identifying Rear Door Scuff Plate Claws

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Pull out the folded lip of the weather strip.

HINT:

Use the same procedures described for the LH side.

1. Attach a new clip A to the vehicle body.
2. Set the pillar garnish to the area labeled B. Using needle-nose pliers, install clip A to the pillar garnish and rotate it 90°.
3. Install the pillar garnish by attaching the claws and clip.

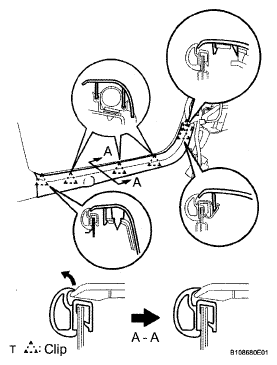

   Fig 9: Installing Front Pillar Garnish Clips And Claws

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
4. Pull out the folded lip of the weather strip.

HINT:

Use the same procedures described for the LH side.

1. Attach the 3 claws to install the trim cover.
2. Pull out the folded lip of the weather strip.

HINT:

Use the same procedures described for the LH side.

1. Attach the 5 claws and install the scuff plate.
   Fig 10: Identifying Front Door Scuff Plate Clips

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Pull out the folded lip of the weather strip.

HINT:

Use the same procedures described for the LH side.

Install console box. (See REASSEMBLY )

Install rear seatback assembly. (See INSTALLATION )

Install rear seat headrest assembly center. (See INSTALLATION )

Install rear seat headrest assembly LH. (See INSTALLATION )

Install rear seat headrest assembly RH. (See INSTALLATION )

Install rear seat cushion assembly. (See INSTALLATION )

Install front seat assembly. (See INSTALLATION )

Connect front seat outer belt assembly. (See INSTALLATION )

Inspect front power seat assembly. (See ON-VEHICLE INSPECTION ) Inspect front power seat assembly (w/ seat position memory system). (See ON-VEHICLE INSPECTION )

Inspect function of seat belt. (See DATA LIST / ACTIVE TEST )

Inspect seat heater. (See SEAT HEATER CONTROL )

Perform initialization. (See INITIALIZATION )
