Front Seat Assembly: Disassembly

CAUTION: Wear protective gloves. Sharp areas on the seat frame and adjuster may injure your hands.

HINT:

Use the same procedures for the LH and RH side.

REMOVE FRONT SEAT INNER BELT ASSEMBLY (See INSPECTION )
REMOVE RECLINING POWER SEAT SWITCH KNOB
1. Using a screwdriver, detach the knob.
  HINT:

  Tape the screwdriver tip before use.
Fig 1: Removing Reclining Power Seat Switch Knob
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE SLIDE AND VERTICAL POWER SEAT SWITCH KNOB
1. Using a screwdriver, detach the knob.
  HINT:

  Tape the screwdriver tip before use.
Fig 2: Removing Slide And Vertical Power Seat Switch Knob
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE FRONT SEAT CUSHION SHIELD WITH NO. 1 CUSHION SHIELD INNER (for Front Driver Side)
1. Disconnect the 2 rubber bands of the front seatback board from the front seat frame.
2. Disconnect the connector from the No. 1 interior illumination light assembly.

  Fig 3: Disconnecting Rubber Bands Of Front Seatback Board From Front Seat Frame
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Remove the 5 screws.
4. Detach the claw and remove the cushion shield (with No. 1 cushion shield inner) in the order indicated in the illustration.
5. Disconnect the connector from the front power seat lumbar switch.

  Fig 4: Removing Cushion Shield
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE FRONT SEAT CUSHION SHIELD WITH NO. 1 CUSHION SHIELD INNER (for Front Passenger Side)
1. Disconnect the 2 rubber bands of the front seatback board from the front seat frame.
2. Disconnect the connector from the No. 1 interior illumination light assembly.

  Fig 5: Disconnecting Rubber Bands Of Front Seatback Board From Front Seat Frame
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Remove the 7 screws.
4. Detach the claw and remove the cushion shield (with No. 1 cushion shield inner) in the order indicated in the illustration.
5. Disconnect the connector from the front power seat lumbar switch.
Fig 6: Removing Cushion Shield (With No. 1 Cushion Shield Inner)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
DISCONNECT NO. 1 FRONT SEAT CUSHION SHIELD INNER
1. Remove the 2 screws.
2. Detach the claw and disconnect the cushion shield inner from the cushion shield.
REMOVE FRONT POWER SEAT LUMBAR SWITCH
1. Remove the 2 screws and switch.
Fig 7: Removing Screws And Switch
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE SEAT TRACK SPACER LOWER OUTER
1. Remove the 2 screws and spacer.
Fig 8: Removing Screws And Spacer
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE FRONT SEAT CUSHION SHIELD INNER
1. Remove the screw.
2. Using a screwdriver, detach the claw.
  HINT:

  Tape the screwdriver tip before use.
3. Using a clip remover, detach the clip and remove the cushion shield.
Fig 9: Identifying Cushion Shield Clip
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE SEAT TRACK SPACER LOWER INNER
1. Remove the 2 screws and spacer from the cushion shield inner.
Fig 10: Removing Screws And Spacer From Cushion Shield Inner
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE FRONT POWER SEAT SWITCH (w/o Seat Position Memory System)
1. Remove the 3 screws.
2. Disconnect the connector and remove the switch.
REMOVE POSITION CONTROL ECU AND SWITCH ASSEMBLY (w/ Seat Position Memory System)
HINT:

Use the same procedures described for the front power seat switch.

Fig 11: Removing Front Power Seat Switch
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE SEPARATE TYPE FRONT SEAT CUSHION COVER
1. Disconnect the connectors and detach the clamps.

  Fig 12: Removing Separate Type Front Seat Cushion Cover
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Detach the clamp of the headrest adjuster's cable (driver side).
3. Disconnect the hook of the front seat cushion cover from the front seat frame.

  Fig 13: Disconnecting Hook Of Front Seat Cushion Cover From Front Seat Frame
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
4. Using a screwdriver, detach the hooks and remove the front seat cushion cover with pad.
  HINT:

  Tape the screwdriver tip before use.

  Fig 14: Removing Front Seat Cushion Cover With Pad
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
5. Remove the hog rings and seat cushion cover from the seat cushion pad.
Fig 15: Removing Hog Rings And Seat Cushion Cover From Seat Cushion Pad
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE FRONT SEATBACK BOARD SUB-ASSEMBLY
1. Open the lower part of the seatback board. Then remove the 2 screws.

  Fig 16: Removing Seatback Board Screws
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Pull the seatback board in the direction indicated by the arrow in the illustration to detach the 2 claws. Then, remove the seatback board.
REMOVE INTERIOR NO. 2 ILLUMINATION LIGHT ASSEMBLY
1. Detach the 2 claws and remove the light from the seatback board.
Fig 17: Removing Light From Seatback Board
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE SEPARATE TYPE FRONT SEATBACK COVER
1. Detach the 4 claws and remove the 2 headrest supports.

  Fig 18: Removing Headrest Supports
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Remove the 4 bolts and front seatback cover (inner and outer).

  Fig 19: Removing Bolts And Front Seatback Cover (Inner And Outer)
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Remove the hog rings and open the upper part of the seatback cover.

  Fig 20: Removing Hog Rings
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
4. Remove the nut and 2 seatback cover brackets.
5. Detach the hooks and remove the hog rings and the seatback cover with pad from the seat frame.

  Fig 21: Removing Hog Rings And Seatback Cover With Pad From Seat Frame
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
6. Remove the hog rings and seatback cover from the seatback pad.
Fig 22: Removing Hog Rings And Seatback Cover From Seatback Pad
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE RECLINING ADJUSTER INSIDE COVER RH LOWER
1. Remove the 2 screws.
2. Detach the claw and remove the inside cover.
Fig 23: Removing Inside Cover
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE RECLINING ADJUSTER INSIDE COVER LH LOWER
1. Remove the 2 screws.
2. Detach the claw and remove the inside cover.
Fig 24: Removing Reclining Adjuster Inside Cover LH Lower
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE RECLINING ADJUSTER INSIDE COVER RH UPPER
1. Remove the screw.
2. Detach the claw and remove the inside cover.
Fig 25: Removing Reclining Adjuster Inside Cover RH Upper
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE RECLINING ADJUSTER INSIDE COVER LH UPPER
1. Remove the screw.
2. Detach the claw and remove the inside cover.
Fig 26: Removing Reclining Adjuster Inside Cover LH Upper
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE FRONT SEAT CUSHION SHIELD LOWER INNER AND OUTER
1. Remove the screw and detach the hook of the cushion shield.
Fig 27: Removing Front Seat Cushion Shield Lower Inner And Outer
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE LUMBAR SUPPORT ADJUSTER ASSEMBLY
1. Disconnect the connector and clamps.
2. Remove the 2 screws and lumbar support adjuster.
Fig 28: Removing Lumbar Support Adjuster Assembly
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE SEATBACK CLIMATE CONTROL BLOWER (w/ Climate Control Seat System)
1. Disconnect the connector and detach the 3 clamps.
2. Using a T30 TORX" socket, remove the 6 "TORX" bolts and remove the seatback climate control cover and blower.
Fig 29: Removing Seatback Climate Control Blower (W/ Climate Control Seat System)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE SEAT CUSHION CLIMATE CONTROL DUCT (w/ Climate Control Seat System)
1. Detach the 2 hooks and 2 claws and remove the duct.
Fig 30: Removing Seat Cushion Climate Control Duct (W/ Climate Control Seat System)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE SEAT CLIMATE CONTROL BLOWER (w/ Climate Control Seat System)
1. Disconnect the connector.
2. Remove the screw, detach the claw and remove the blower with bracket.
3. Remove the 3 bolts, 3 bushes and blower from the bracket.
Fig 31: Removing Seat Climate Control Blower
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE FRONT SEAT HEADREST ADJUSTER SUB-ASSEMBLY (for Driver Side)

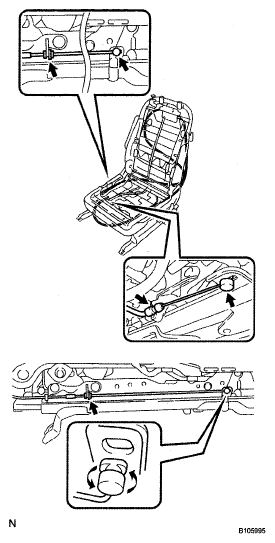

1. Disconnect the cable from the front seat frame inner side.

  Fig 32: Disconnecting Cable From Front Seat Frame Inner Side
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

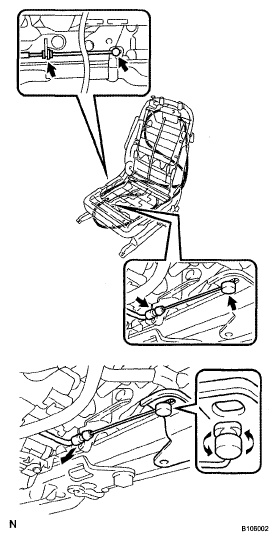

2. Disconnect the cable from the front seat frame underside.

  Fig 33: Disconnecting Cable From Front Seat Frame Under Side
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Remove the headrest lock release button.

  Fig 34: Removing Headrest Lock Release Button
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
4. Remove the 2 bolts and headrest adjuster from the seat frame.
Fig 35: Removing Bolts And Headrest Adjuster From Seat Frame
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE SEAT POSITION AIRBAG SENSOR (for Driver Side)
1. Disconnect the connector.
2. Detach the claw and remove the seat slide position sensor protector.
3. Using a T30 "TORX" socket, remove the "TORX" bolt and airbag sensor.
REMOVE SEAT HEATER CONTROL SUB-ASSEMBLY (w/ Seat Heater System)
1. Disconnect the connector and detach the clamp.
Fig 36: Removing Seat Heater Control Sub-Assembly
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE OCCUPANT CLASSIFICATION SENSOR (for Front Passenger Side)
1. Remove the 2 clips.
2. Disconnect the sensor connector and remove the sensor.
Fig 37: Removing Occupant Classification Sensor (For Front Passenger Side)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE OCCUPANT CLASSIFICATION ECU (for Front Passenger Side)
1. Remove the 2 nuts.
2. Disconnect the ECU connector and remove the ECU.
Fig 38: Removing Occupant Classification ECU (For Front Passenger Side)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE FRONT SEAT WIRE
