Front Passenger Side Power Window does not Operate with Front Passenger Side Power Window Switch: Wiring Diagram

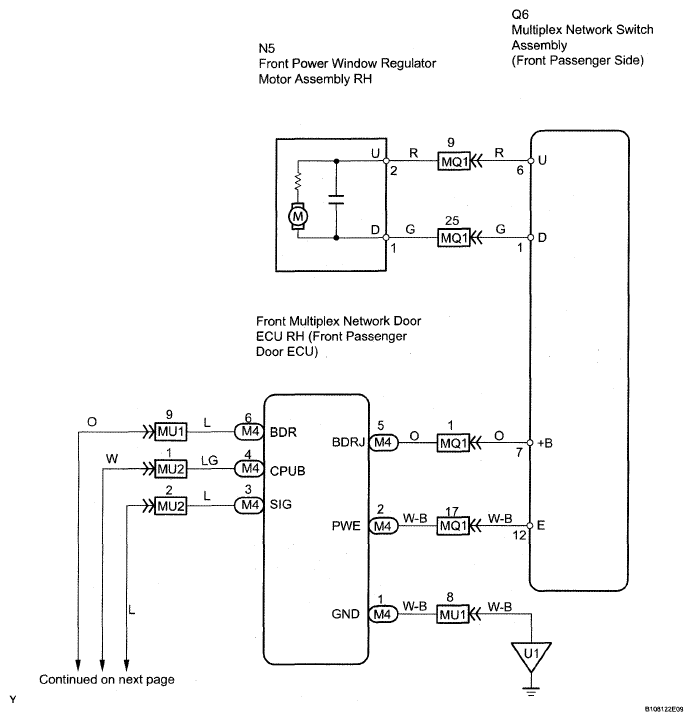

Fig 1: Front Passenger Side Power Window Does Not Operate With Front Passenger Side Power Window Switch - Wiring Diagram (1 Of 2)
G05300170Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

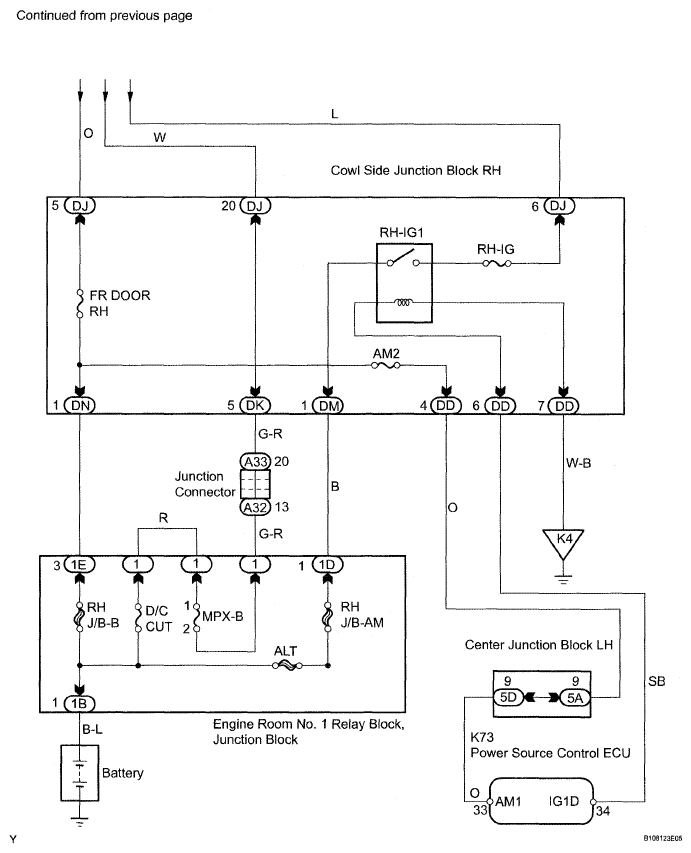

Fig 2: Front Passenger Side Power Window Does Not Operate With Front Passenger Side Power Window Switch - Wiring Diagram (2 Of 2)
G05300171Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
