Rear Power Window LH does not Operate with Rear Power Window Switch LH: Wiring Diagram

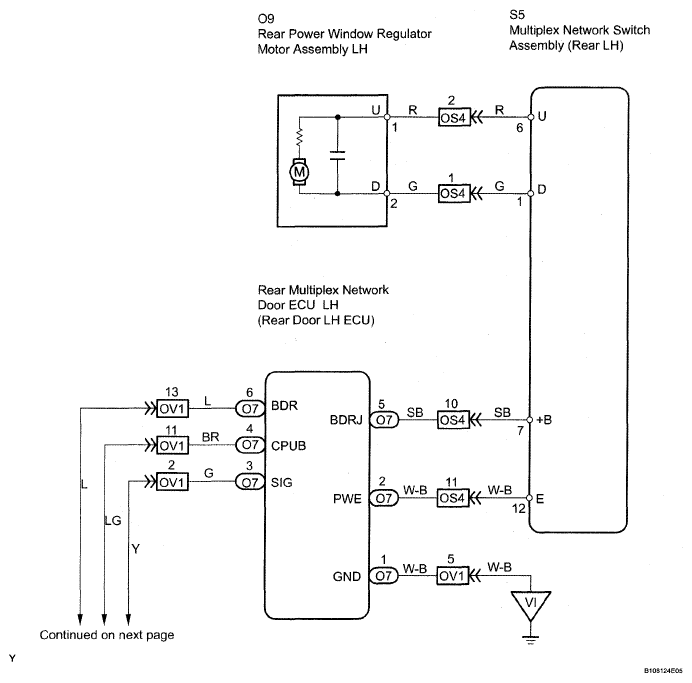

Fig 1: Rear Power Window LH Does Not Operate With Rear Power Window Switch LH - Wiring Diagram (1 Of 2)
G05300176Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

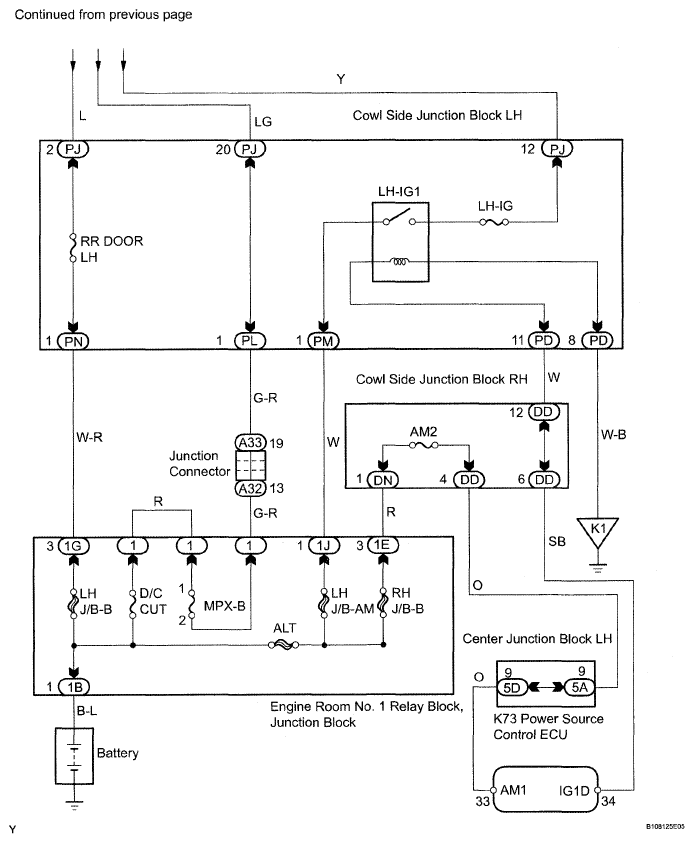

Fig 2: Rear Power Window LH Does Not Operate With Rear Power Window Switch LH - Wiring Diagram (2 Of 2)
G05300177Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
