Rear Power Window RH does not Operate with Rear Power Window Switch RH: Wiring Diagram

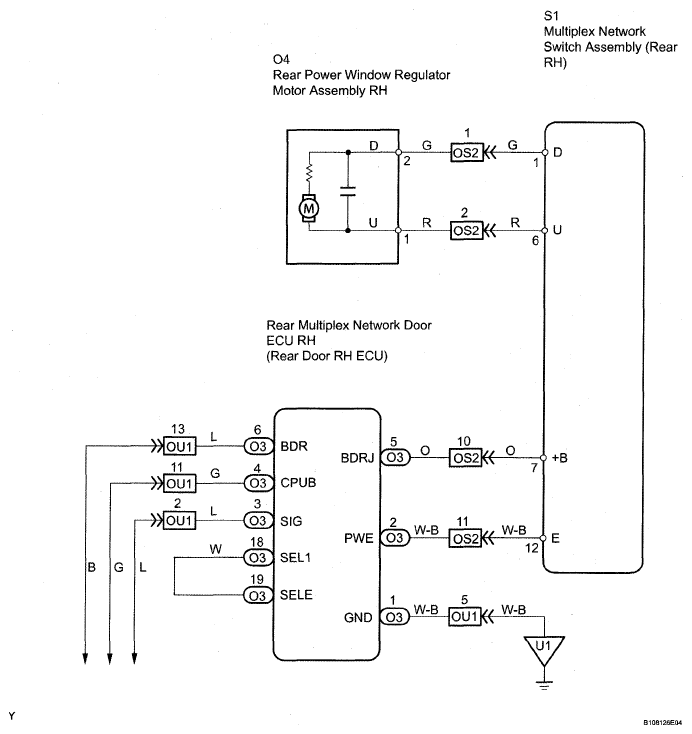

Fig 1: Rear Power Window RH Does Not Operate With Rear Power Window Switch RH - Wiring Diagram (1 Of 2)
G05300182Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

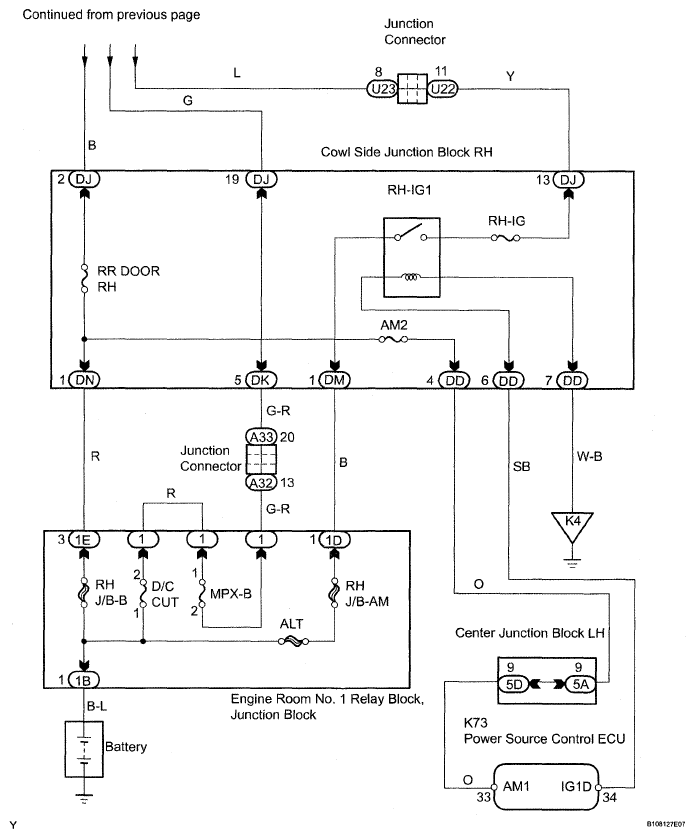

Fig 2: Rear Power Window RH Does Not Operate With Rear Power Window Switch RH - Wiring Diagram (2 Of 2)
G05300183Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
