Slip Indicator Light Remains ON: Wiring Diagram

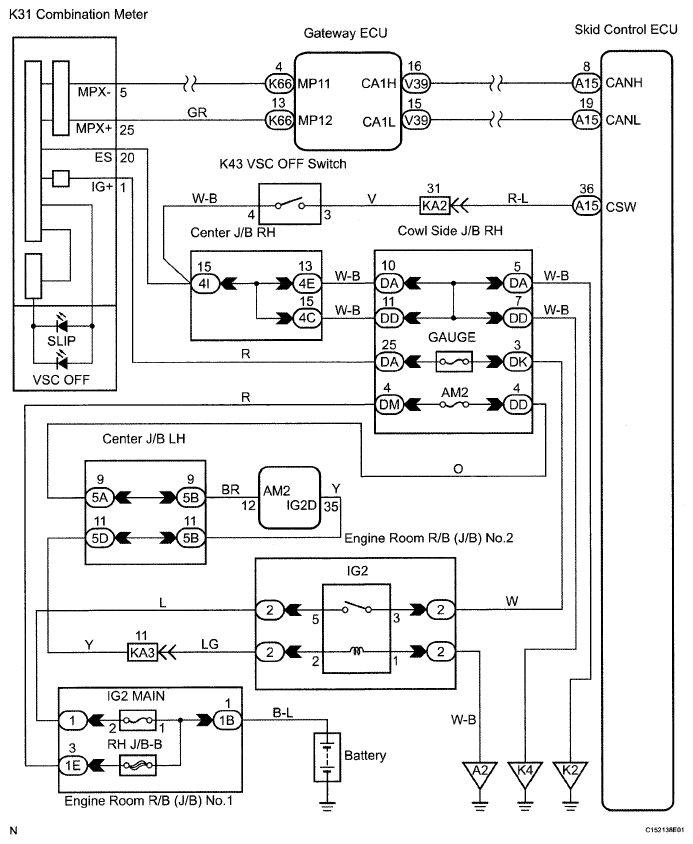

Fig 1: Slip Indicator Light - Wiring Diagram
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
