Climate Control Seat: Notes

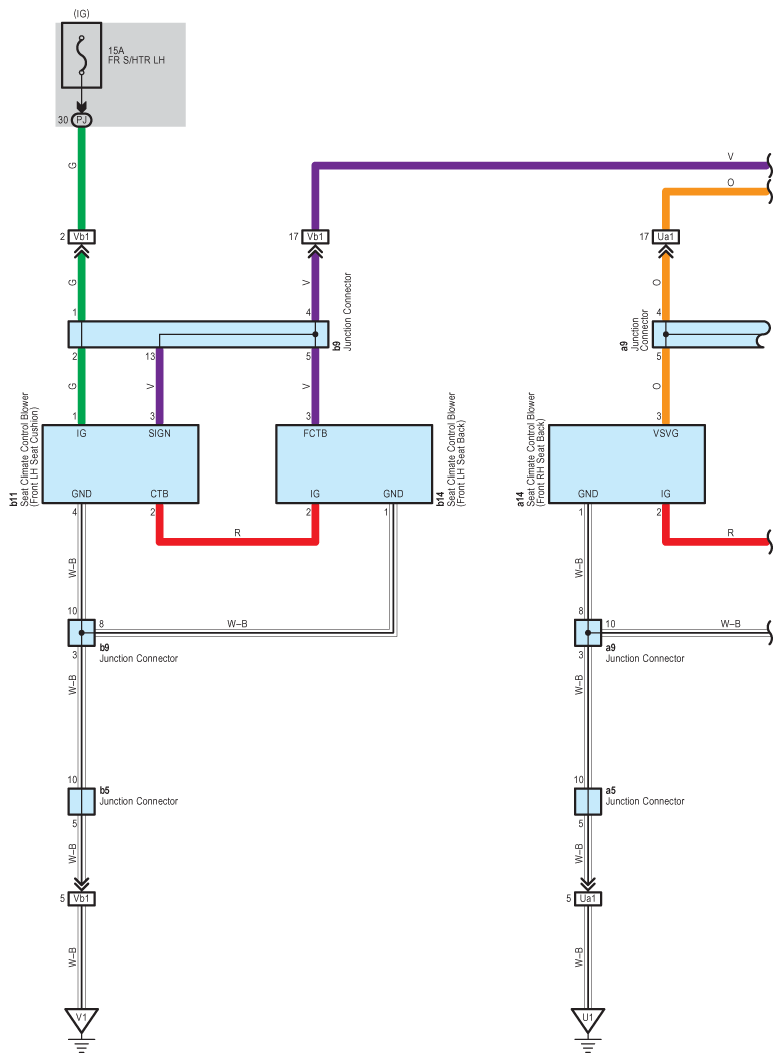

Fig 1: Climate Control Seat System Wiring Diagram (1 Of 5)
G08915924Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

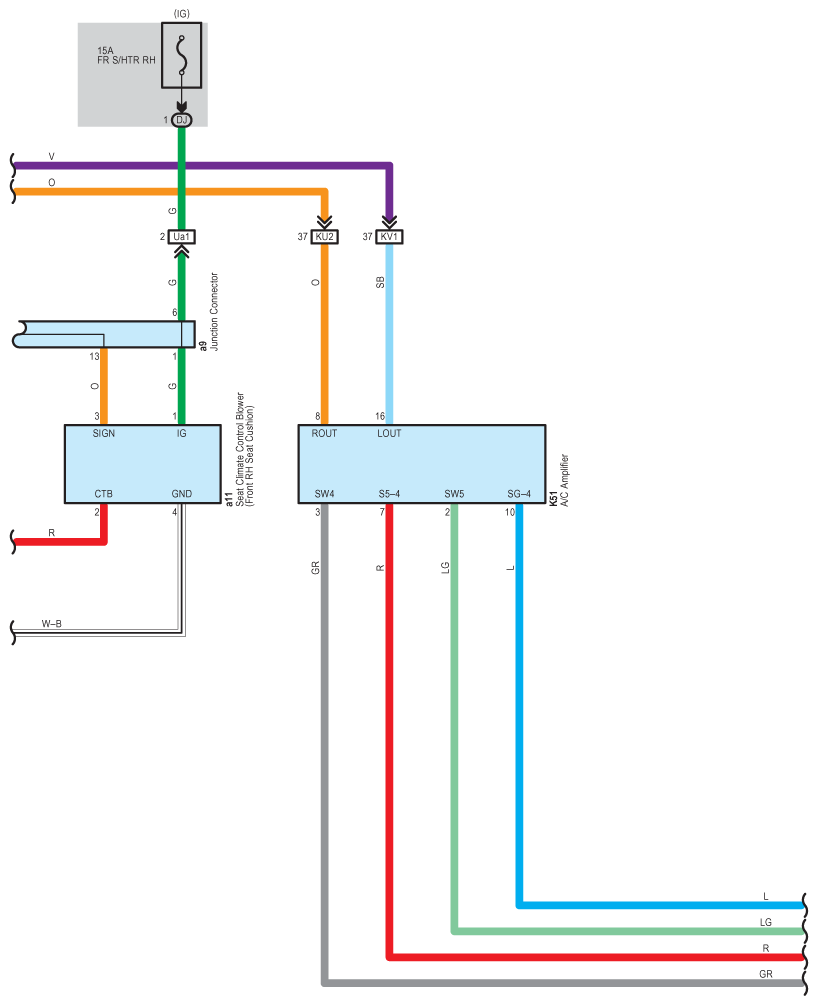

Fig 2: Climate Control Seat System Wiring Diagram (2 Of 5)
G08915925Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

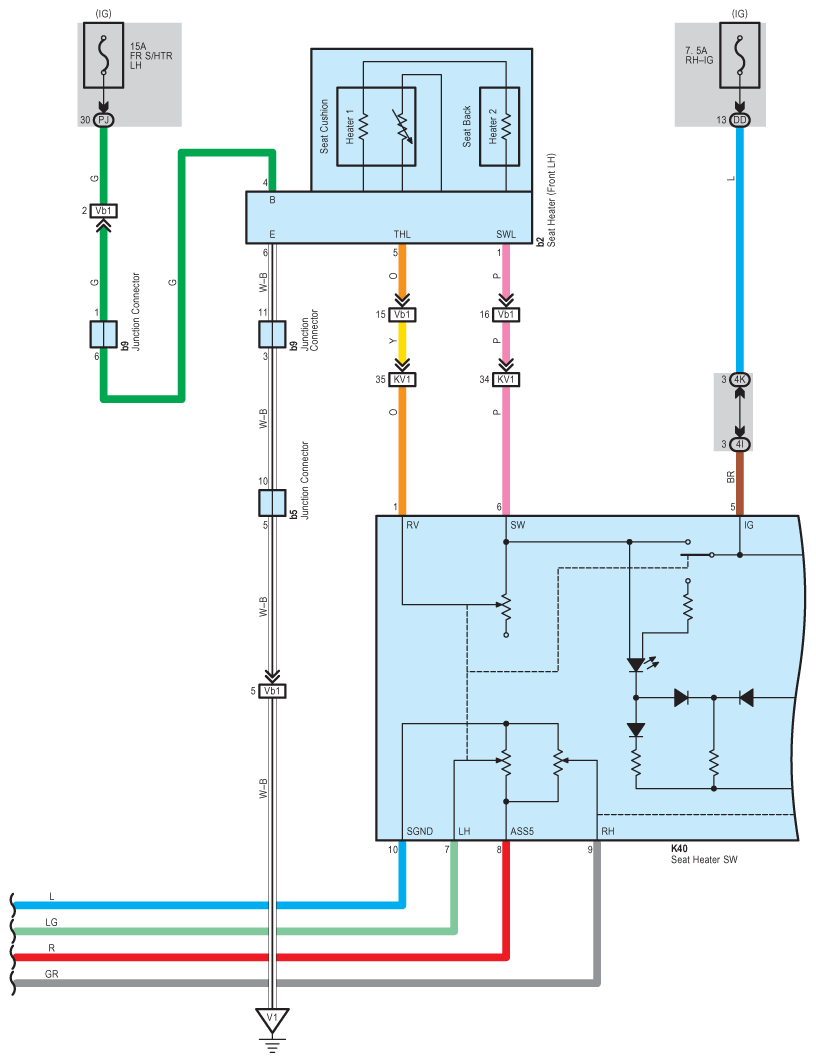

Fig 3: Climate Control Seat System Wiring Diagram (3 Of 5)
G08915926Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

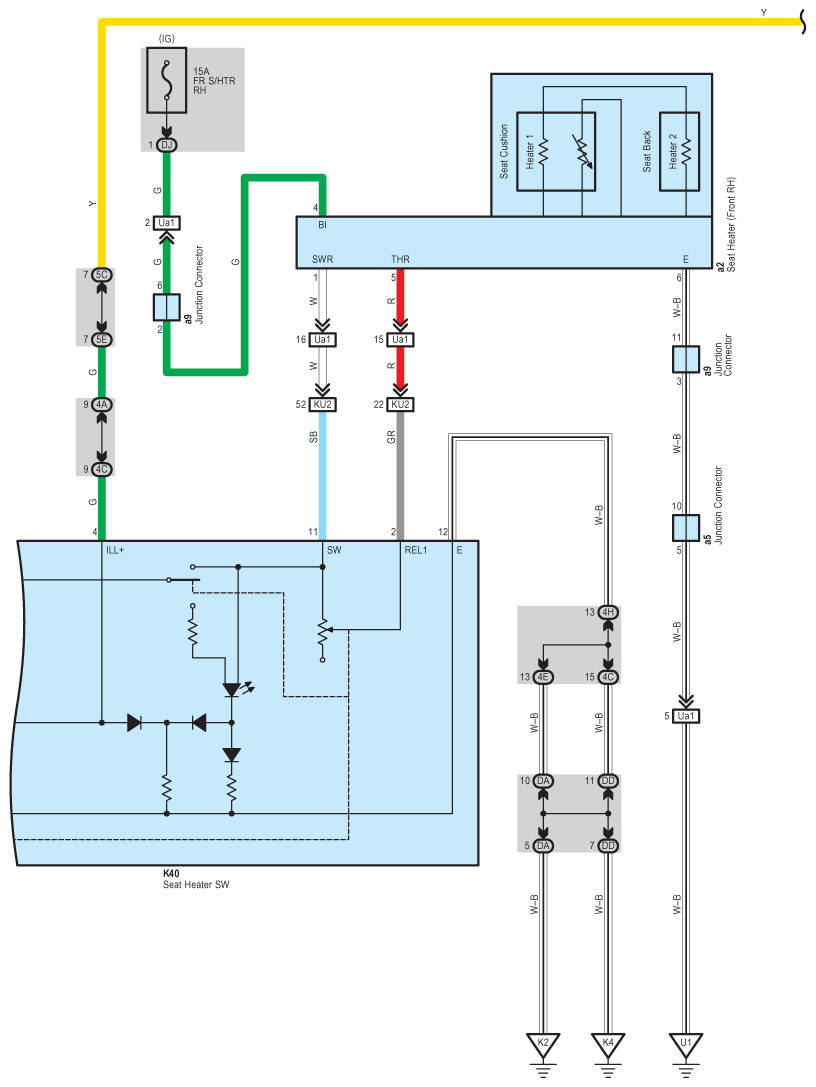

Fig 4: Climate Control Seat System Wiring Diagram (4 Of 5)
G08915927Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

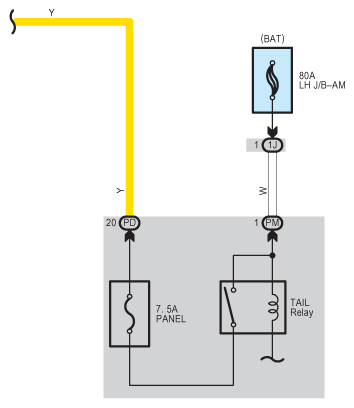

Fig 5: Climate Control Seat System Wiring Diagram (5 Of 5)
G08915928Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
