Power Seat for Driver's Seat without Memory: Notes

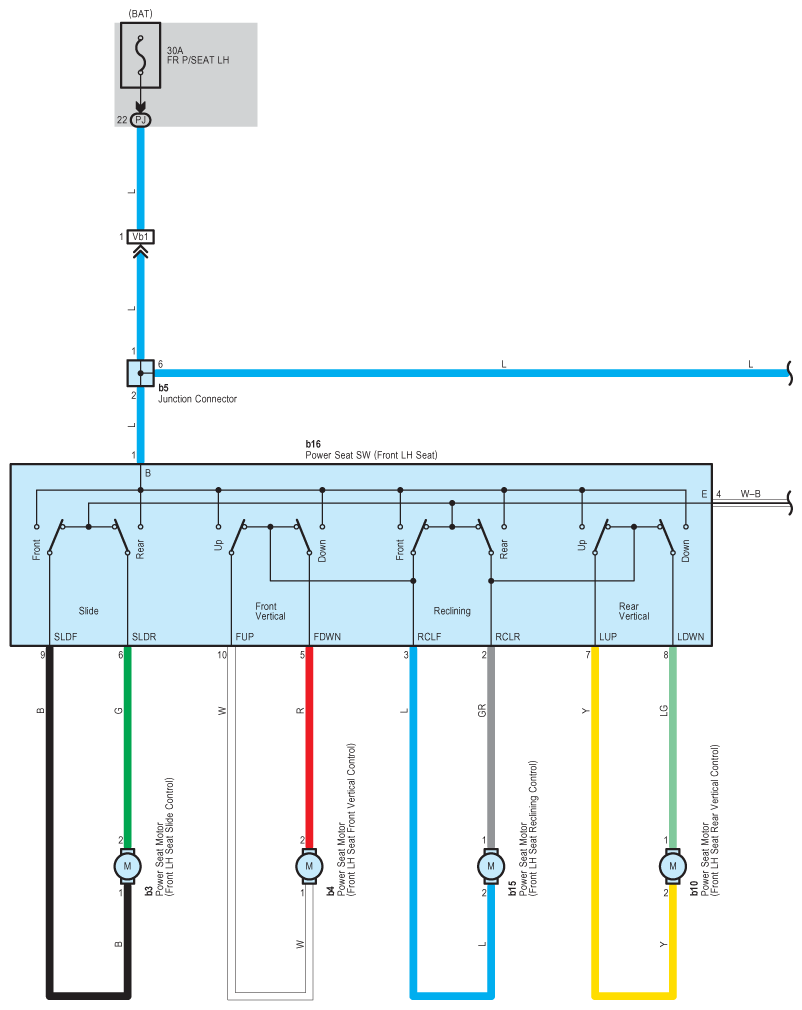

Fig 1: Power Seat For Driver'S Seat Without Memory System Wiring Diagram (1 Of 2)
G08915916Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

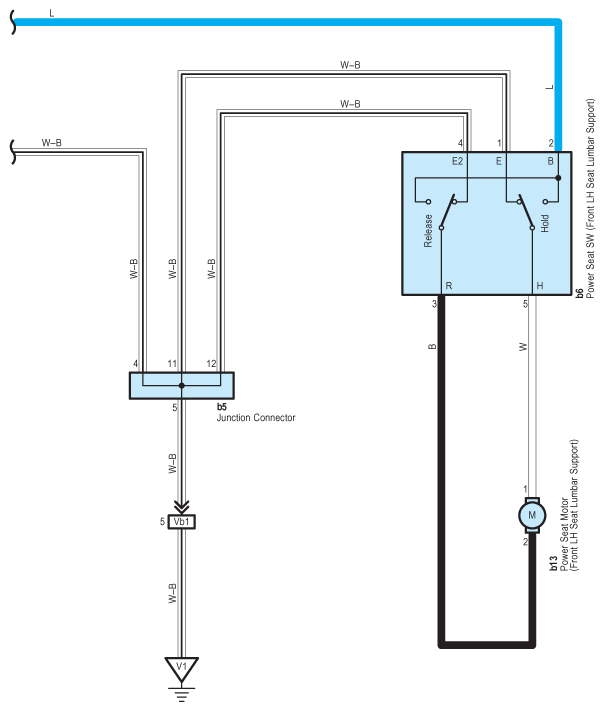

Fig 2: Power Seat For Driver'S Seat Without Memory System Wiring Diagram (2 Of 2)
G08915917Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
