Power Seat for Front Passenger's Seat without Memory: Notes

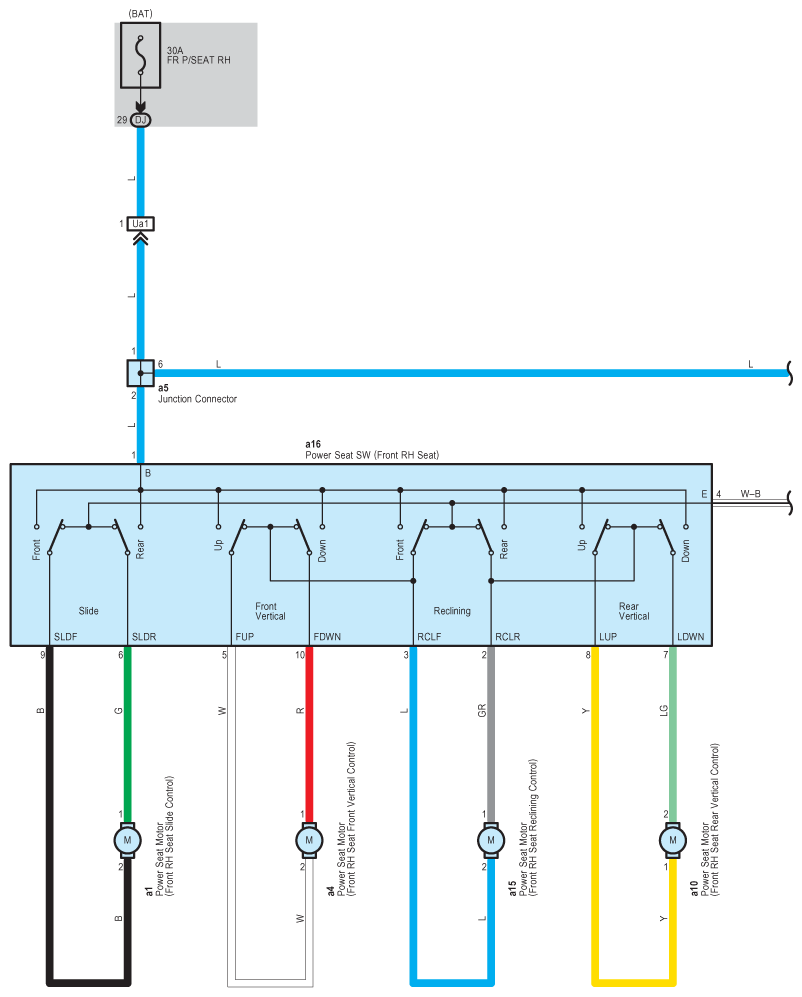

Fig 1: Power Seat For Front Passenger'S Seat Without Memory System Wiring Diagram (1 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

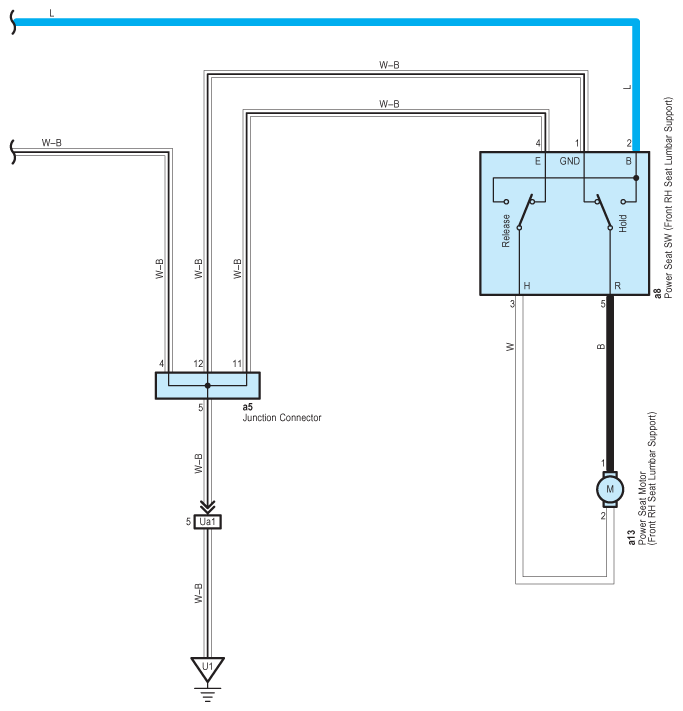

Fig 2: Power Seat For Front Passenger'S Seat Without Memory System Wiring Diagram (2 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
