VGRS System: Notes — 2007 Lexus GS 430 Service Manual ~ FixVault

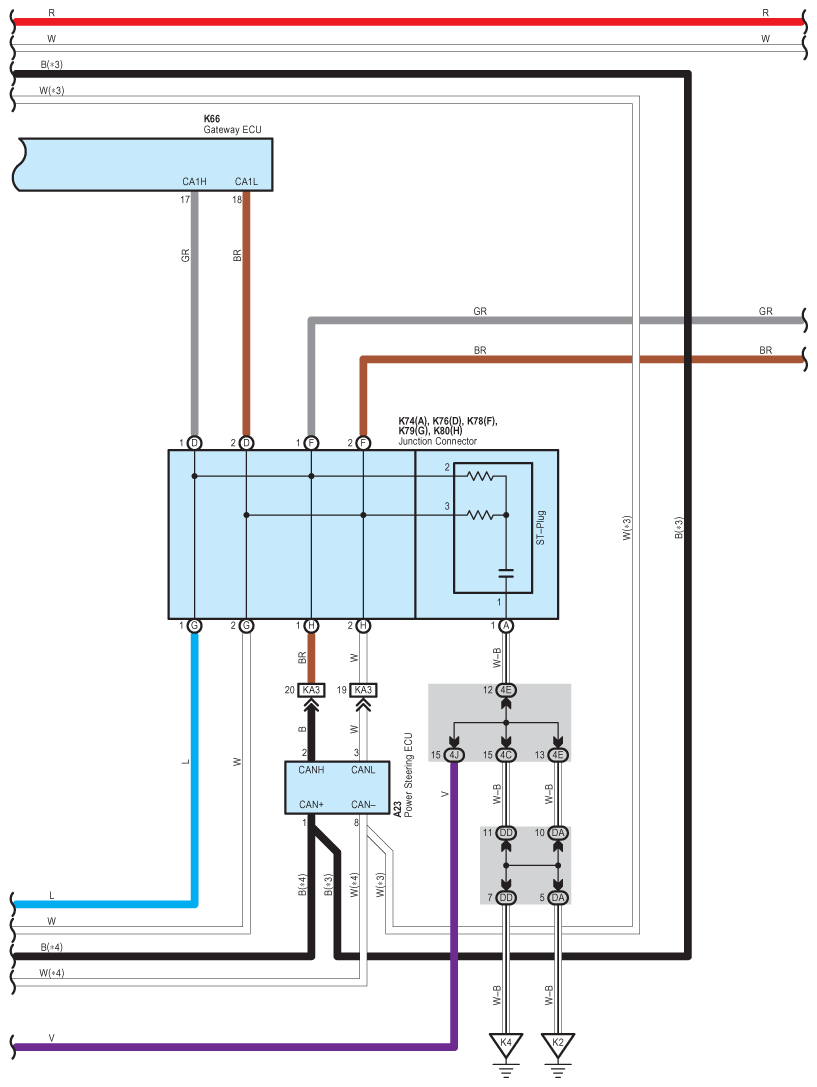

Fig 1: VGRS System Wiring Diagram (1 Of 6)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

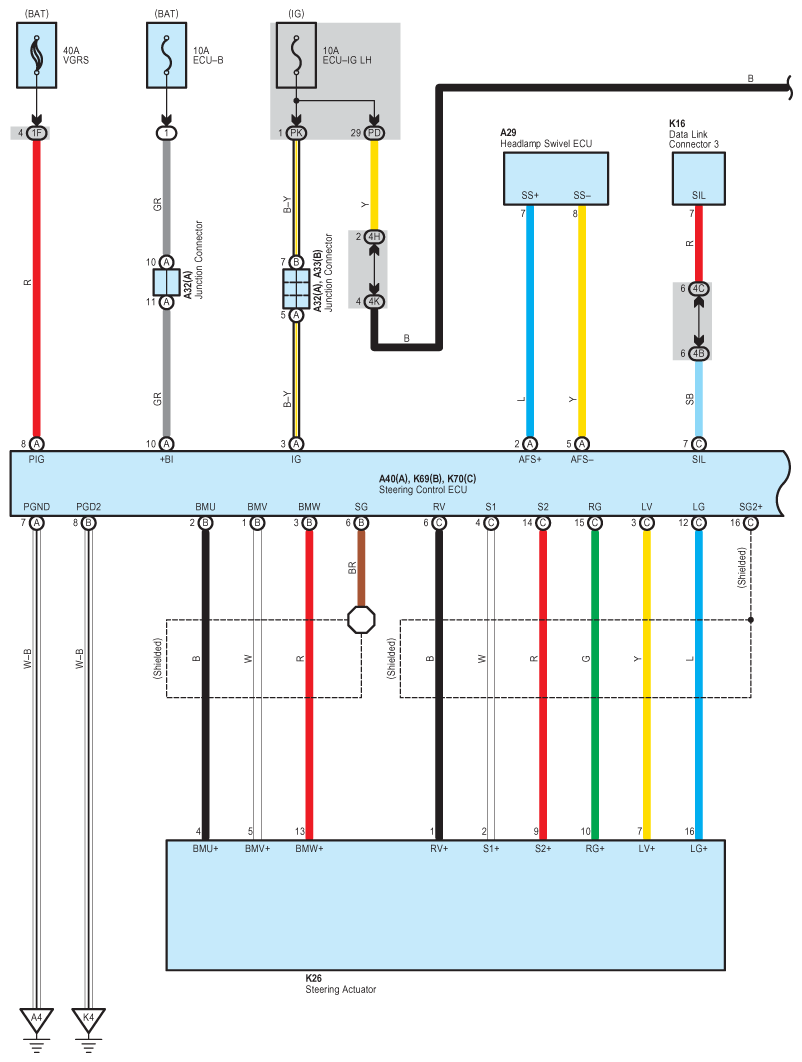

Fig 2: VGRS System Wiring Diagram (2 Of 6)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

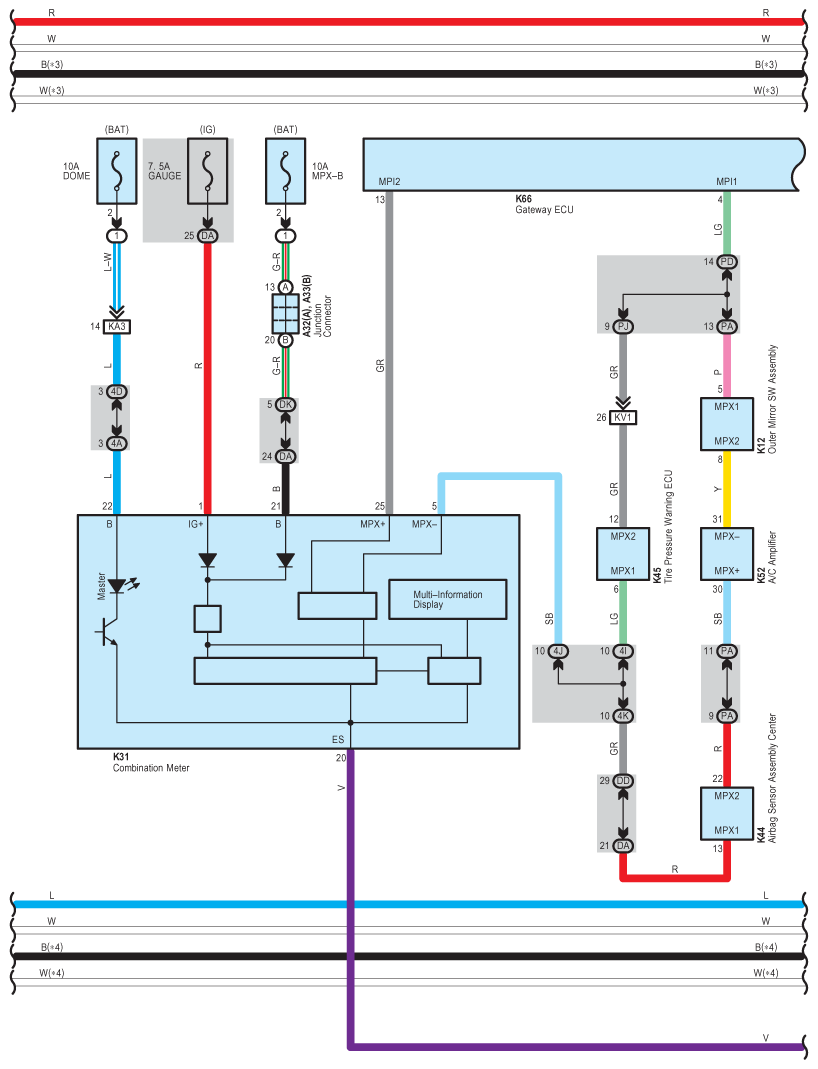

Fig 3: VGRS System Wiring Diagram (3 Of 6)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

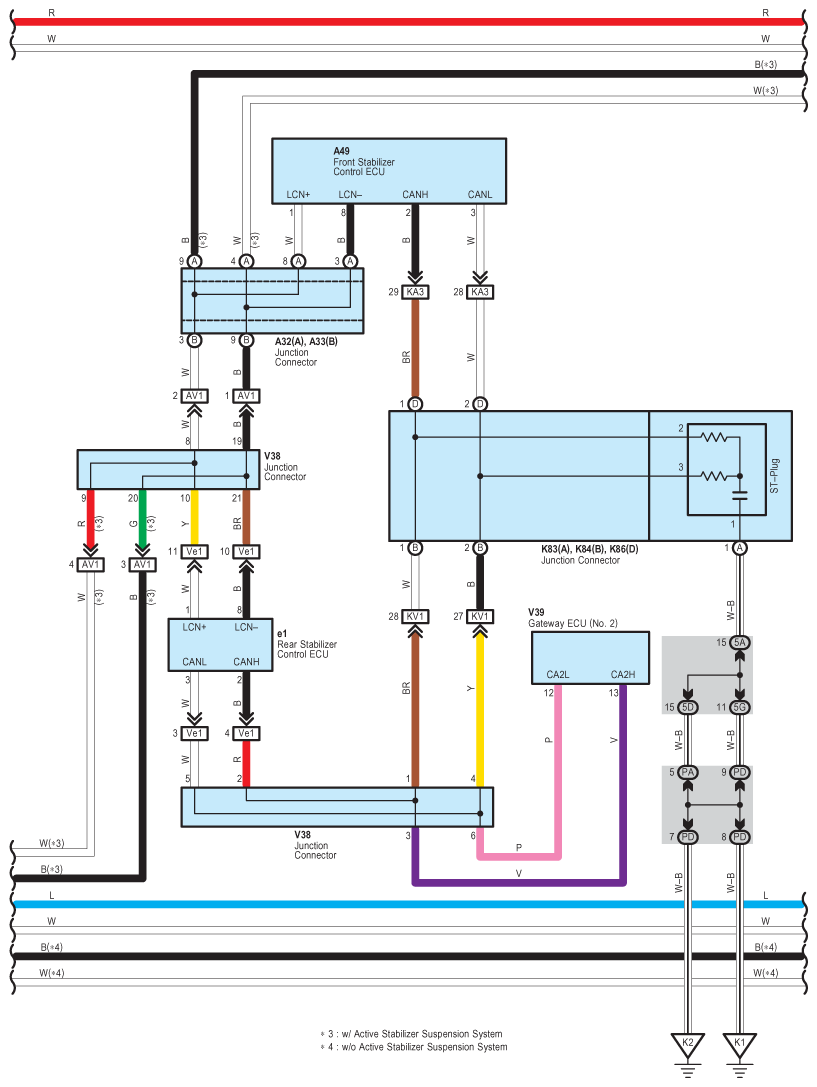

Fig 4: VGRS System Wiring Diagram (4 Of 6)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

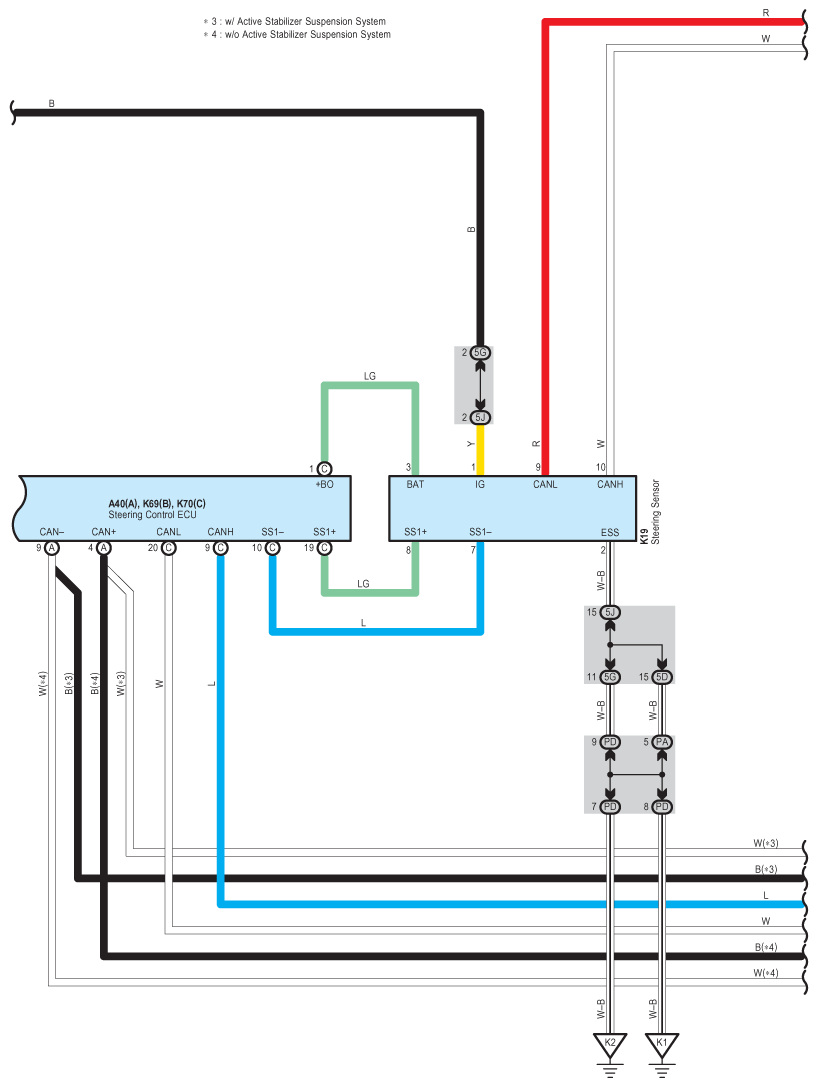

Fig 5: VGRS System Wiring Diagram (5 Of 6)

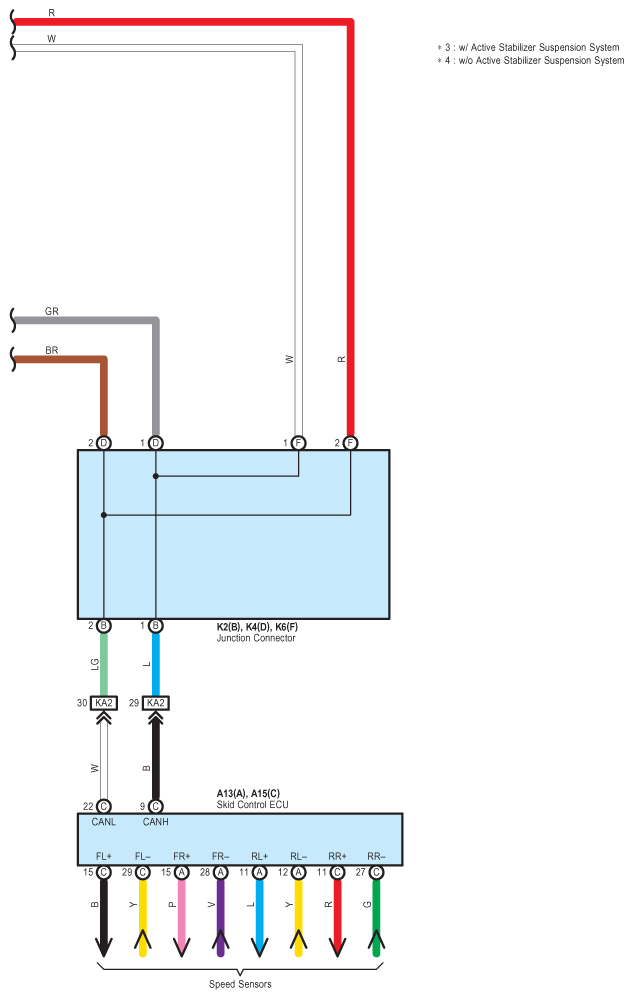

Fig 6: VGRS System Wiring Diagram (6 Of 6)
