Cranking Holding Function Circuit: Wiring Diagram

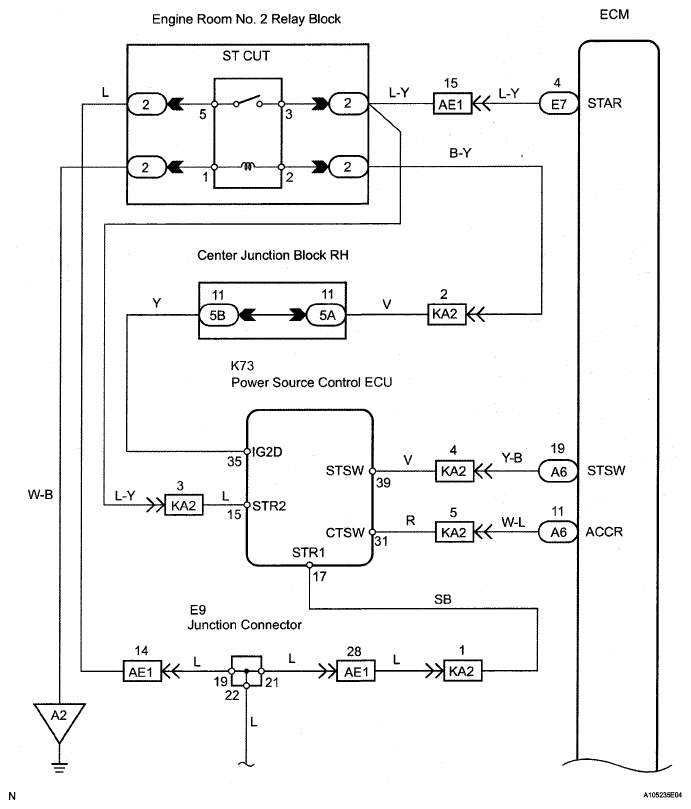

Fig 1: Cranking Holding Function Circuit - Wiring Diagram (1 Of 2)
G05285642Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

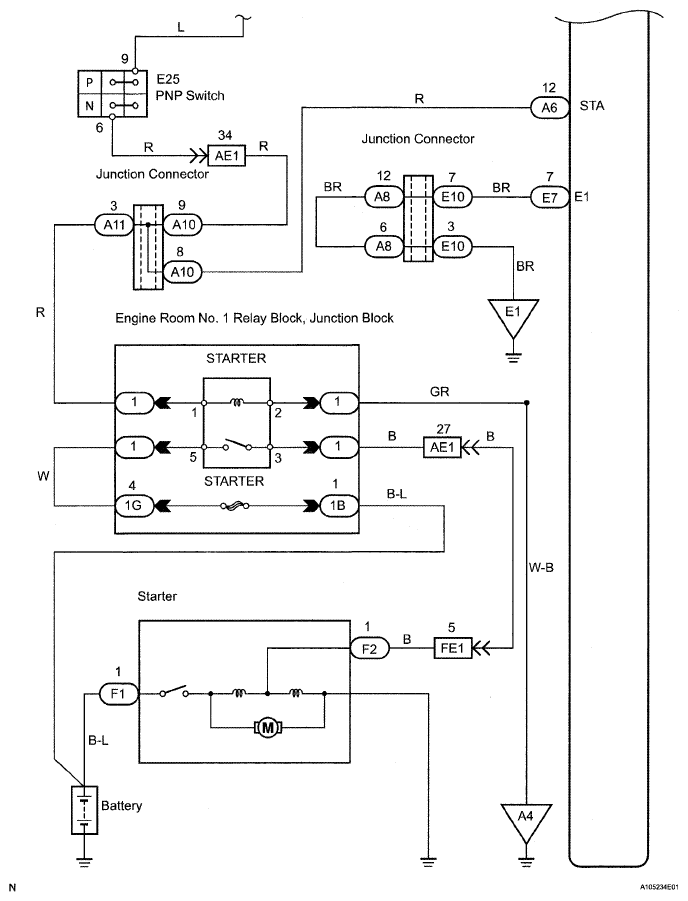

Fig 2: Cranking Holding Function Circuit - Wiring Diagram (2 Of 2)
G05285643Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
