DTC P0101 Mass Air Flow Circuit Range / Performance Problem
›
Wiring Diagram
DTC P0101 Mass Air Flow Circuit Range / Performance Problem: Wiring Diagram

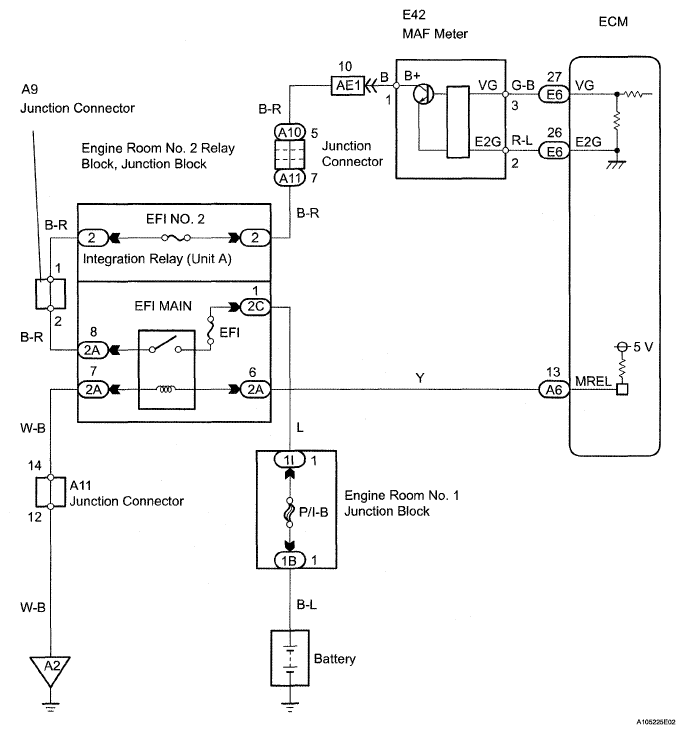

Fig 1: Mass Air Flow Meter - Wiring Diagram
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
