Monitor Result: Wiring Diagram

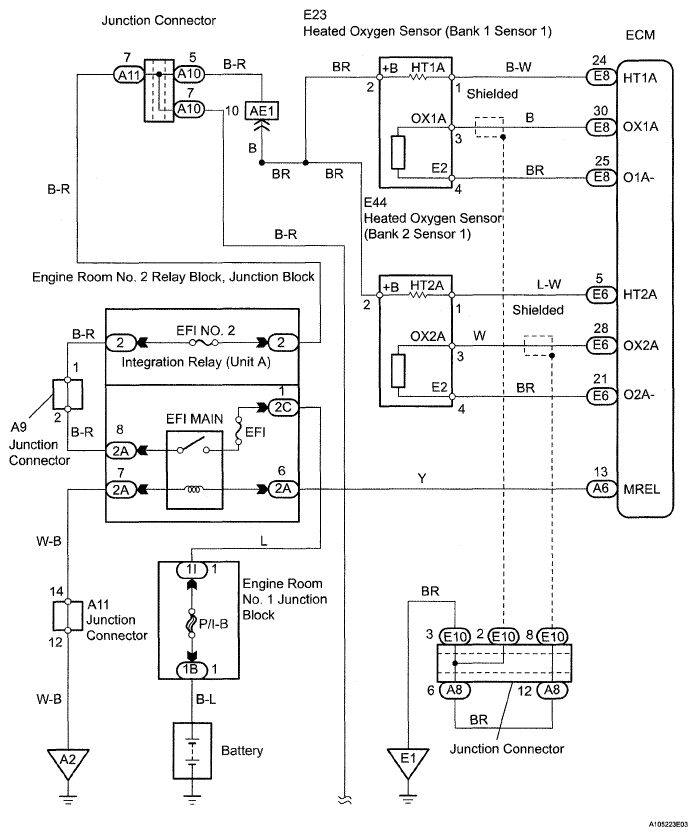

Fig 1: Heated Oxygen Sensor (Bank 1 Sensor 1) - Wiring Diagram
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

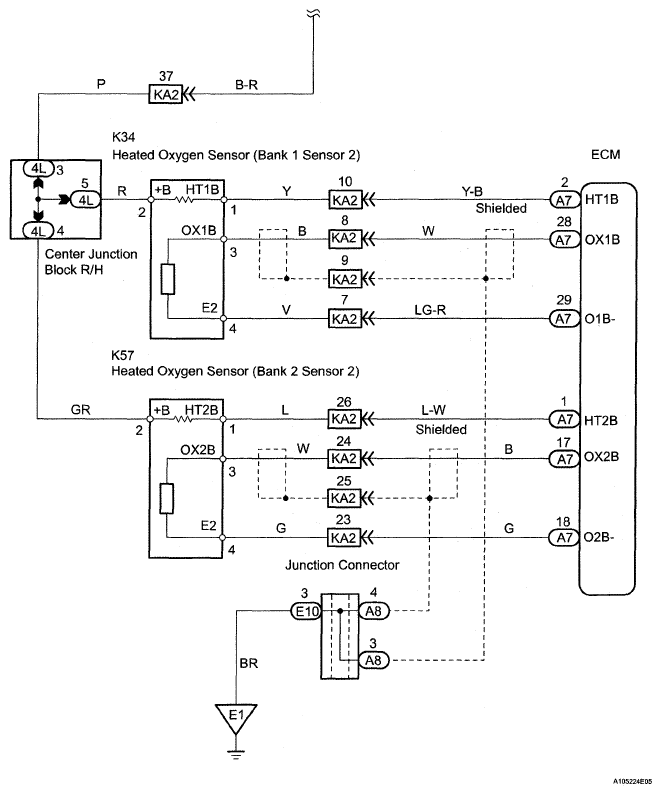

Fig 2: Heated Oxygen Sensor (Bank 1 Sensor 2) - Wiring Diagram
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
