Fuel Pressure Pulsation Damper: Components

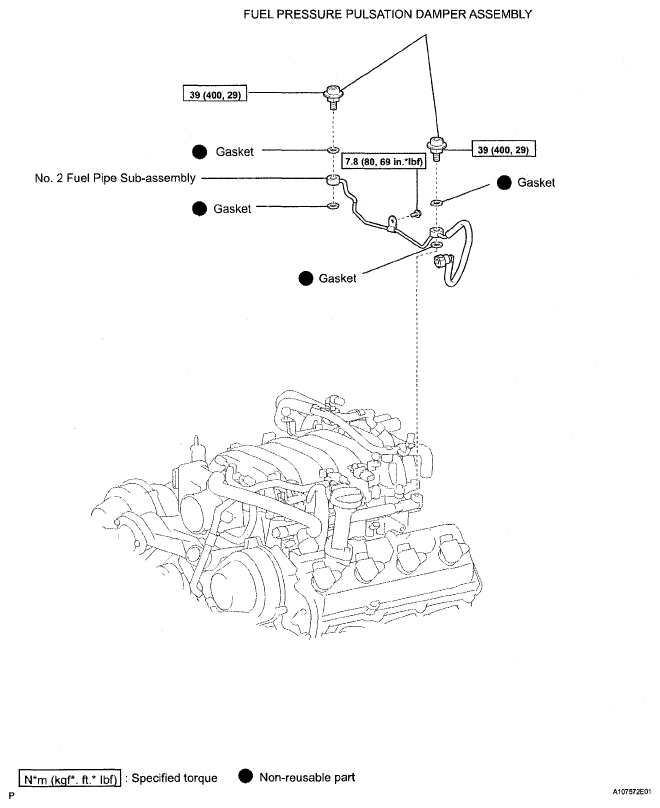

Fig 1: Pressure Pulsation Damper Replacement Components With Torque Specifications (1 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 2: Pressure Pulsation Damper Replacement Components With Torque Specifications (2 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
