Ignition (3UZ-FE)
›
Ignition System
›
System Diagram
System Diagram

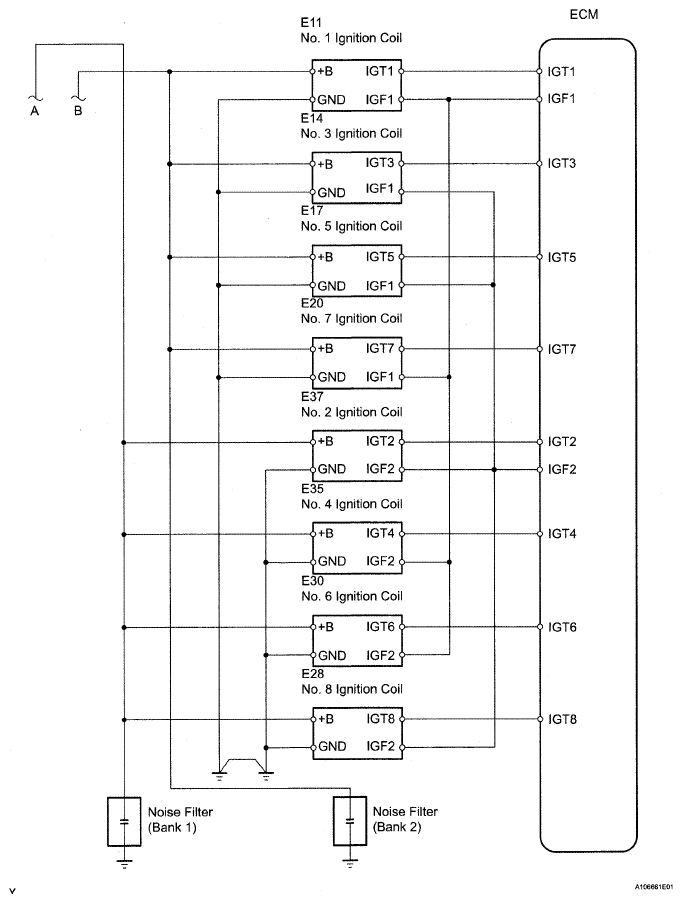

Fig 1: Ignition System Components Diagram (1 Of 2)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

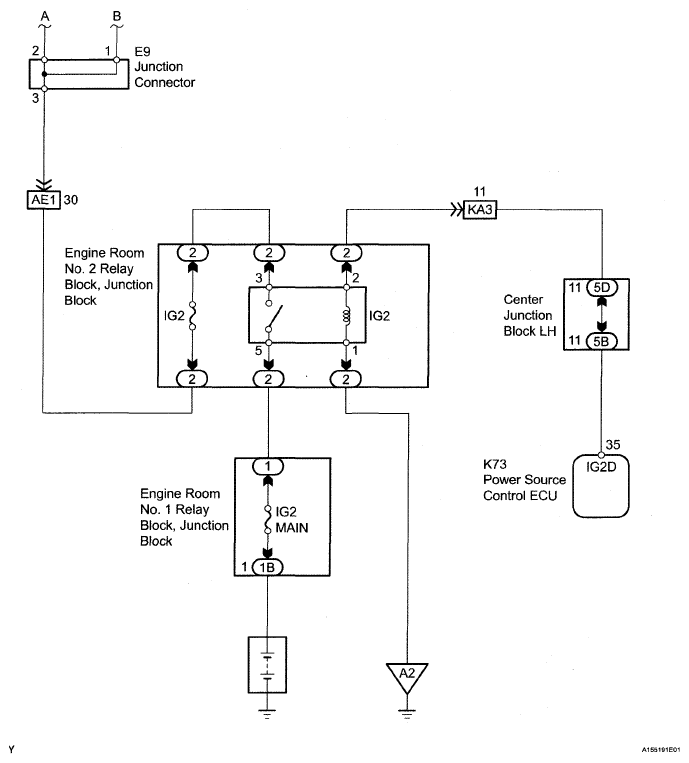

Fig 2: Ignition System Components Diagram (2 Of 2)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
