Tire Pressure Warning Valve/Sensor Activation (PD041-06)
Publication date: 2006-08-11Reference number: PD041-06
TIRE PRESSURE WARNING VALVE/SENSOR ACTIVATION
TECHNICAL SERVICE BULLETIN
Reference Number(s): PD041-06, Date of Issue:
August 11, 2006
| LEXUS: | 2007 GS 350 & GS 430 |
| Section: | PRE-DELIVERY SERVICE |
| COPYRIGHT: | © 2018 Lexus, a division of Toyota Motor Sales, USA License Agreement TMS1002 |
Introduction
The 2007 model year GS 350 and GS 430 vehicles are equipped with a direct-type Tire Pressure Warning System (TPWS). Each tire (including the spare tire) has a tire pressure warning valve/sensor, and the measured tire pressure data is transmitted to the Tire Pressure Warning System antenna/receiver to the Tire Pressure Warning System ECU.
During Pre-Delivery Service (PDS), the tire pressure warning valves/sensors must be activated according to the procedure in this bulletin.
Applicable Vehicles
- 2007 model year GS 350 and GS 430 vehicles.
Required SSTs
REQUIRED SSTS
| ITEM NO. | SPECIAL SERVICE TOOLS (SSTs) | PART NUMBER | QTY | DRW(2) | |||||
|---|---|---|---|---|---|---|---|---|---|

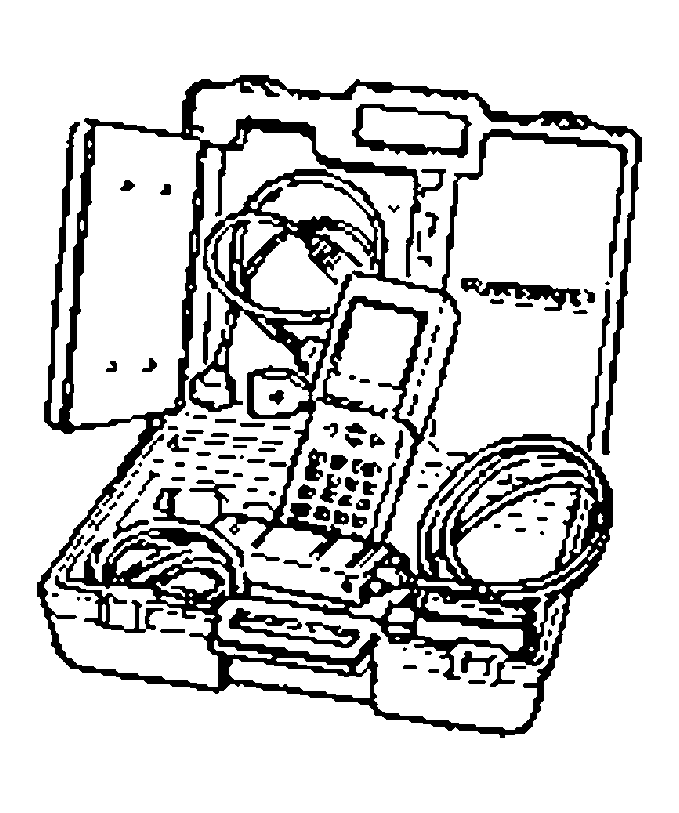

| 1 | Lexus Diagnostic Tester Kit (1)
NOTE:
|
LEX220036 | 1 | 8 | |||||
| 2 | CAN Interface Module Kit (1)
NOTE:
|
01002744 | 1 | 8 | |||||
|
|||||||||
NOTE:
Additional Diagnostic Tester Kits, CAN Interface Modules, Program Cards, or other SSTs may be ordered by calling SPX/OTC at 1-800-933-8335.
Warranty Information
WARRANTY INFORMATION
| OP CODE | DESCRIPTION | TIME | OFP | T1 | T2 |
|---|---|---|---|---|---|
| N/A | Not Applicable to Warranty | - | - | - | - |
Reference

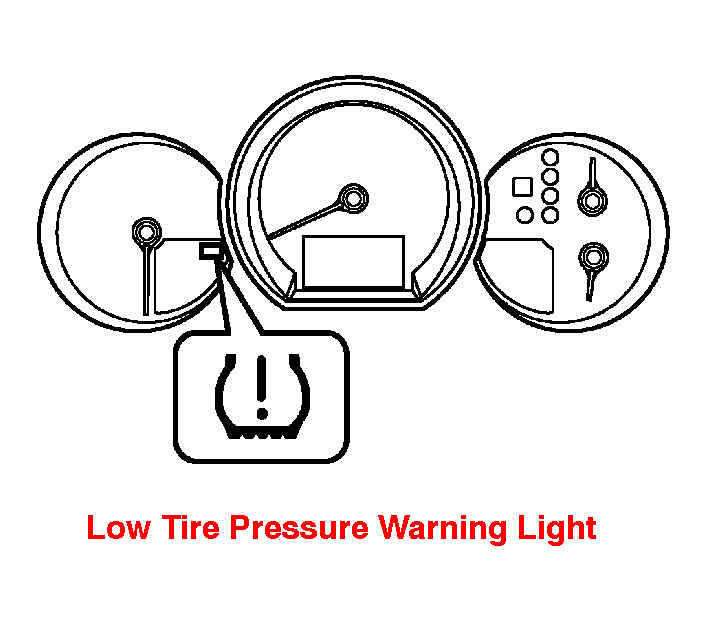

- The Low Tire Pressure Warning Light will blink until all the tire pressure warning valves/sensors are activated.
- The Diagnostic Trouble Codes (DTCs) listed below may be stored in the TPWS ECU until the tire pressure warning valves/sensors are activated.
- The DTCs will automatically clear when the tire pressure warning valves/sensors are activated.DTC CHART
(1) (2) DTC 11 C2111 Transmitter ID1 Operation Stop (Sleep Mode) 12 C2112 Transmitter ID2 Operation Stop (Sleep Mode) 13 C2113 Transmitter ID3 Operation Stop (Sleep Mode) 14 C2114 Transmitter ID4 Operation Stop (Sleep Mode) 15 C2115 Transmitter ID5 Operation Stop (Sleep Mode) (1) Indicated by blinking of the low tire pressure warning light. (2) Indicated on the Lexus Diagnostic Tester.
Activation Procedure
- Connect the Diagnostic Tester.

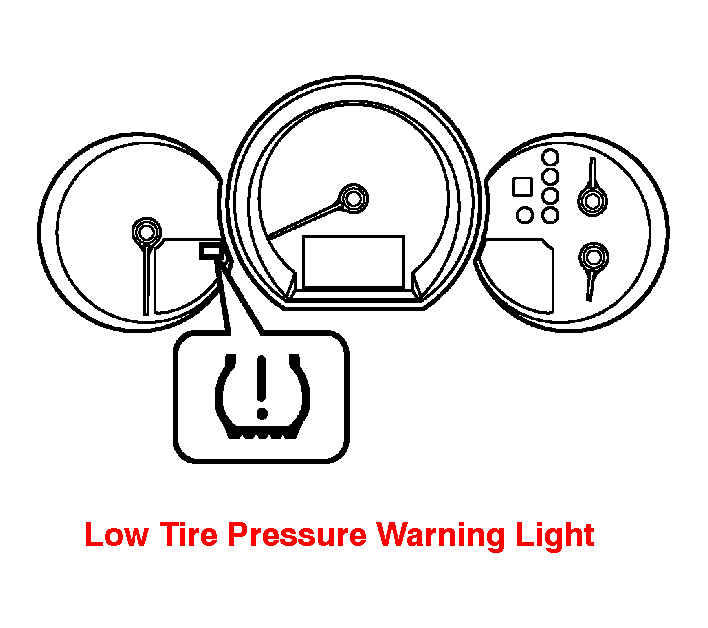

- Turn the ignition switch to the "ON" position and check that the Low Tire Pressure Warning Light blinks.

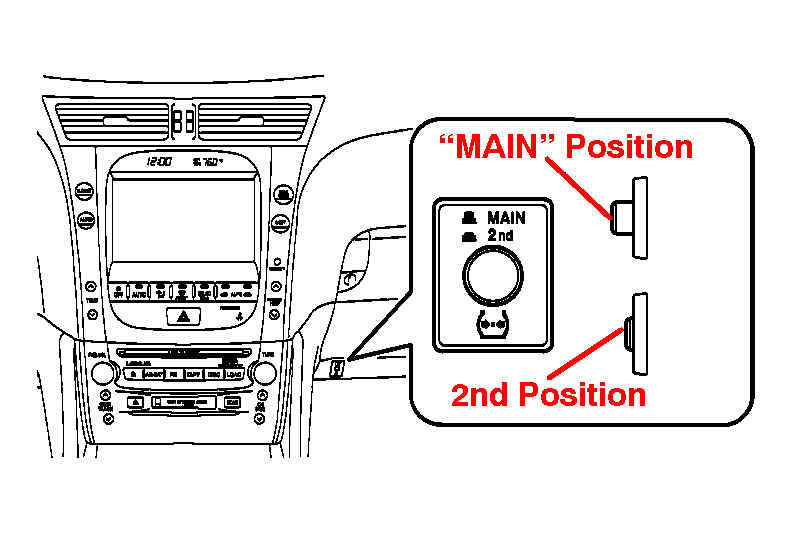

- Check that the "MAIN/2nd" Switch is in the UP position (system is in "MAIN" mode).

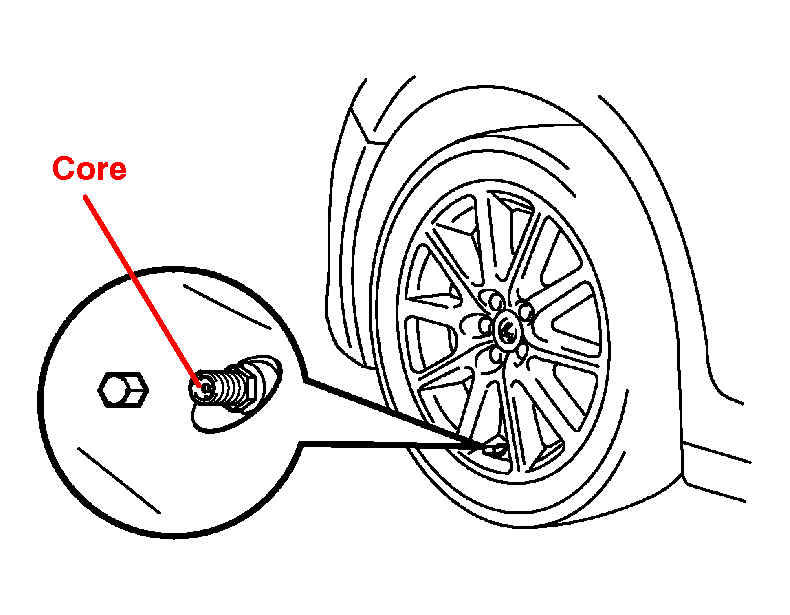

- Press or remove the valve core to reduce the tire inflation pressure rapidly by 6 psi (0.4 kgf/cm2
, 40 kPa), or more, within 30 seconds.
If the tire inflation pressure is NOT reduced by 6 psi (0.4 kgf/cm2 , 40 kPa), or more, within 30 seconds, the tire pressure warning valves/sensors will NOT be activated.
NOTE: This operation is required for the system to be activated and must be performed for each tire (including the spare tire), one at a time. - Using the Diagnostic Tester, check for TPWS DTCs.

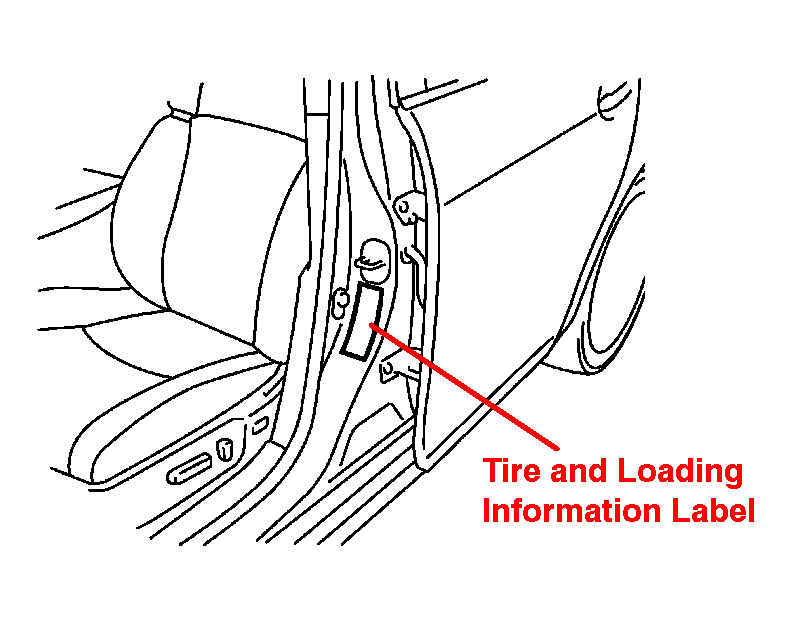

- Adjust all tires (including the spare tire ) to the standard tire inflation pressure, as indicated on the Tire and Loading Information label located inside the driver's door jam and confirm that the Low Tire Pressure Warning Light is OFF.

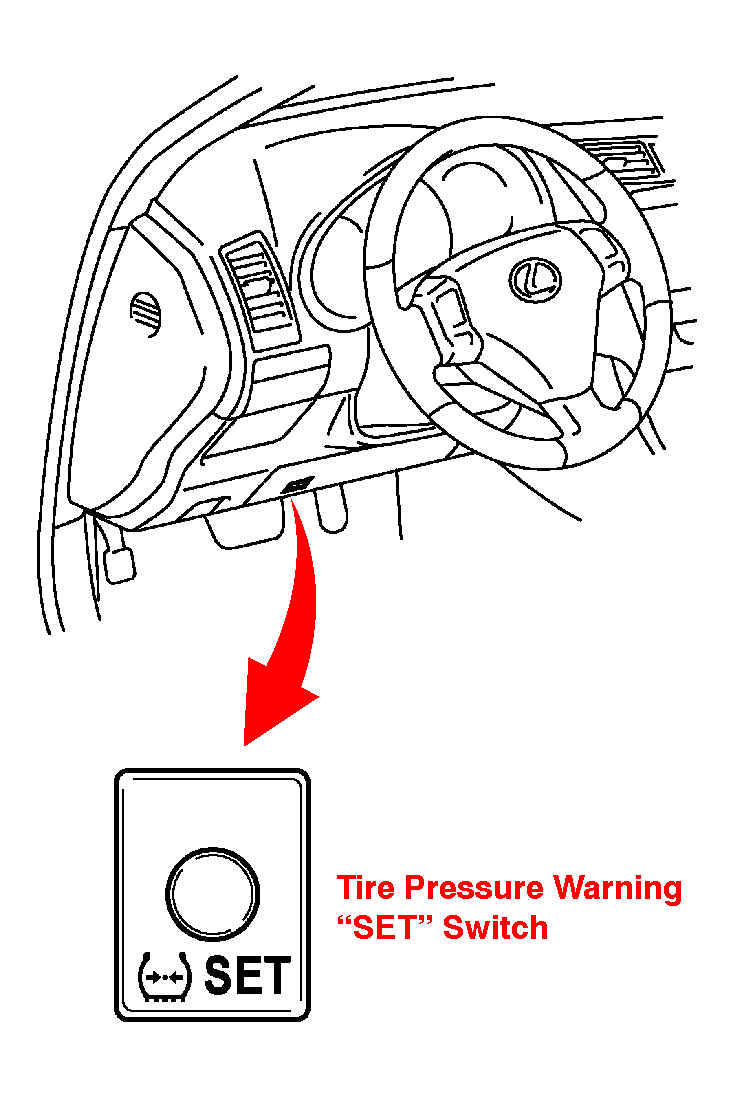

- Push and hold the Tire Pressure Warning "SET" Switch for 3 seconds until the Low Tire Pressure Warning Light blinks 3 times and then turns OFF to set the tire pressure initialization.NOTE: It is necessary for the ignition to be in the "ON" position a maximum of 5 minutes for initialization to complete correctly.
